Building Data Pipelines with Iceberg and Snowflake LLM-Based Functions
Overview
This Hands-On Lab exercise is designed to help you learn how to build and manage Iceberg tables with Snowflake Cortex LLM nodes within Coalesce. In this lab, you’ll explore the Coalesce interface, load Iceberg tables into your project, learn how to easily transform and model your data with our core capabilities, and use the Cortex LLM functions node that Coalesce provides users.
What You’ll Need
- A Snowflake trial account
- A Coalesce trial account created via Snowflake Partner Connect
- Basic knowledge of SQL, database concepts, and objects
- The Google Chrome browser
What You’ll Build
- A Directed Acyclic Graph (DAG) that builds an Cortex LLM Pipeline which leverages Iceberg tables
What You’ll Learn
- How to navigate the Coalesce interface
- Load in iceberg tables
- How to add data sources to your graph
- How to prepare your data for transformations with Stage nodes
- How to union tables
- How to set up and configure Cortex LLM Nodes
- How to analyze the output of your results in Snowflake
By completing the steps we’ve outlined in this guide, you’ll have mastered the basics of Coalesce and can venture into our more advanced features.
About Coalesce
Coalesce is the first cloud-native, visual data transformation platform built for Snowflake. Coalesce enables data teams to develop and manage data pipelines in a sustainable way at enterprise scale and collaboratively transform data without the traditional headaches of manual, code-only approaches.
What Can You Do With Coalesce?
With Coalesce, you can:
- Develop data pipelines and transform data as efficiently as possible by coding as you like and automating the rest, with the help of an easy-to-learn visual interface
- Work more productively with customizable templates for frequently used transformations, auto-generated and standardized SQL, and full support for Snowflake functionality
- Analyze the impact of changes to pipelines with built-in data lineage down to the column level
- Build the foundation for predictable DataOps through automated CI/CD workflows and full git integration
- Ensure consistent data standards and governance across pipelines, with data never leaving your Snowflake instance
How Is Coalesce Different?
Coalesce’s unique architecture is built on the concept of column-aware metadata, meaning that the platform collects, manages, and uses column- and table-level information to help users design and deploy data warehouses more effectively. This architectural difference gives data teams the best that legacy ETL and code-first solutions have to offer in terms of flexibility, scalability, and efficiency.
Data teams can define data warehouses with column-level understanding, standardize transformations with data patterns (templates) and model data at the column level.
Coalesce also uses column metadata to track past, current, and desired deployment states of data warehouses over time. This provides unparalleled visibility and control of change management workflows, allowing data teams to build and review plans before deploying changes to data warehouses.
Core Concepts in Coalesce
Snowflake
Coalesce currently only supports Snowflake as its target database, As you will be using a trial Coalesce account created via Partner Connect, your basic database settings will be configured automatically and you can instantly build code.
Organization
A Coalesce organization is a single instance of the UI, set up specifically for a single prospect or customer. It is set up by a Coalesce administrator and is accessed via a username and password. By default, an organization will contain a single Project and a single user with administrative rights to create further users.
Projects
Projects provide a way of completely segregating elements of a build, including the source and target locations of data, the individual pipelines and ultimately the git repository where the code is committed. Therefore teams of users can work completely independently from other teams who are working in a different Coalesce Project.
Each Project requires access to a git repository and Snowflake account to be fully functional. A Project will default to containing a single Workspace, but will ultimately contain several when code is branched.
Workspaces VS Environments
A Coalesce Workspace is an area where data pipelines are developed that point to a single git branch and a development set of Snowflake schemas. One or more users can access a single Workspace. Typically there are several Workspaces within a Project, each with a specific purpose (such as building different features). Workspaces can be duplicated (branched) or merged together.
A Coalesce Environment is a target area where code and job definitions are deployed to. Examples of an environment would include QA, PreProd, and Production.
It isn’t possible to directly develop code in an Environment, only deploy to there from a particular Workspace (branch). Job definitions in environments can only be run via the CLI or API (not the UI). Environments are shared across an entire project, therefore the definitions are accessible from all workspaces. Environments should always point to different target schemas (and ideally different databases), than any Workspaces.
Lab Use Case
You will be stepping into the shoes of the lead Data & Analytics manager for the fictional Snowflake Ski Store brand. You are responsible for building and managing data pipelines that deliver insights to the rest of the company in a timely and actionable manner. Management has asked that they receive insight into how customers feel about product defects, and which customers are the most unhappy when defects are received. The data you will be analyzing is from the Snowflake Ski Store call center, where customers call in with questions or complaints. Each conversation is recorded and stored as a call transcript within a table of your database. This is what you will use to uncover the insights that management is seeking.
Management is hoping you can create and build a pipeline that uses Large Language Model functions that allow them to have consistent insight into customer sentiment and around the brand and product.
Before You Start
To complete this lab, please create free trial accounts with Snowflake and Coalesce by following the steps below. You have the option of setting up Git-based version control for your lab, but this is not required to perform the following exercises. Please note that none of your work will be committed to a repository unless you set Git up before developing.
We recommend using Google Chrome as your browser for the best experience.
Not following these steps will cause delays and reduce your time spent in the Coalesce environment.
Step 1: Create a Snowflake Trial Account
-
Fill out the Snowflake trial account form here. Use an email address that is not associated with an existing Snowflake account.
-
After registering, you will receive an email from Snowflake with an activation link and URL for accessing your trial account. Finish setting up your account following the instructions in the email.
Step 2: Create a Coalesce Trial Account with Snowflake Partner Connect
Once you are logged into your Snowflake account, sign up for a free Coalesce trial account using Snowflake Partner Connect. Check your Snowflake account profile to make sure that it contains your fist and last name.
-
Select Data Products > Partner Connect in the navigation bar on the left hand side of your screen and search for Coalesce in the search bar.
-
Review the connection information and then click Connect.
-
When prompted, click Activate to activate your account. You can also activate your account later using the activation link emailed to your address.
-
Once you’ve activated your account, fill in your information to complete the activation process.
Congratulations. You’ve successfully created your Coalesce trial account.
Step 3: Set Up External Volume and Catalog Integration
We will be using a dataset from a public S3 bucket for this lab. The bucket has been provisioned so that any Snowflake account can access the dataset. In order to use Iceberg tables, you are required to set up an external integration as well as a catalog integration. This step will walk you through how to do this.
-
Within Worksheets, click the "+" button in the top-right corner of Snowsight and choose "SQL Worksheet.”
-
Now you can copy and paste the following code into your worksheet. Ensure you are using the ACCOUNTADMIN role in Snowflake for this process.
CREATE or REPLACE database coalesce_hol;
CREATE or REPLACE schema coalesce_hol.calls;
CREATE or REPLACE file format jsonformat
type = 'JSON';
create or replace stage coalesce_hol.calls.cortex_iceberg_hol
url = 's3://iceberg-hol/';
CREATE OR REPLACE EXTERNAL VOLUME iceberg_external_volume
STORAGE_LOCATIONS =
(
(
NAME = 'iceberg-hol'
STORAGE_PROVIDER = 'S3'
STORAGE_BASE_URL = 's3://iceberg-hol/'
STORAGE_AWS_ROLE_ARN = 'arn:aws:iam::034362027654:role/iceberg-hol-role'
STORAGE_AWS_EXTERNAL_ID = 'iceberg-hol'
)
);
CREATE OR REPLACE CATALOG INTEGRATION iceberg_catalog_integration
CATALOG_SOURCE = OBJECT_STORE
TABLE_FORMAT = ICEBERG
ENABLED = TRUE;
GRANT USAGE ON EXTERNAL VOLUME iceberg_external_volume TO ROLE pc_coalesce_role;
GRANT USAGE ON INTEGRATION iceberg_catalog_integration TO ROLE pc_coalesce_role; -
You have now successfully set up an external volume and catalog integration.
Navigating the Coalesce User Interface
📌 Note: About this lab. Screenshots (product images, sample code, environments) depict examples and results that may vary slightly from what you see when you complete the exercises. This lab exercise does not include Git (version control). Please note that if you continue developing in your Coalesce account after this lab, none of your work will be saved or committed to a repository unless you set up before developing.
Let's get familiar with Coalesce by walking through the basic components of the user interface.
Once you've activated your Coalesce trial account and logged in, you will land in your Projects dashboard. Projects are a useful way of organizing your development work by a specific purpose or team goal, similar to how folders help you organize documents in Google Drive.
Your trial account includes a default Project to help you get started.
-
Launch your Development Workspace by clicking the Launch button and navigate to the Build Interface of the Coalesce UI. This is where you can create, modify and publish nodes that will transform your data.
Nodes are visual representations of objects in Snowflake that can be arranged to create a Directed Acyclic Graph (DAG or Graph). A DAG is a conceptual representation of the nodes within your data pipeline and their relationships to and dependencies on each other.
-
In the Browser tab of the Build interface, you can visualize your node graph using the Graph, Node Grid, and Column Grid views. In the upper right hand corner, there is a person-shaped icon where you can manage your account and user settings.
-
By clicking the question mark icon, you can access the Resource Center to find product guides, view announcements, request support, and share feedback.
-
The Browser tab of the Build interface is where you’ll build your pipelines using nodes. You can visualize your graph of these nodes using the Graph, Node Grid, and Column Grid views. While this area is currently empty, we will build out nodes and our Graph in subsequent steps of this lab.
-
Next to the Build interface is the Deploy interface. This is where you will push your pipeline to other environments such as Testing or Production.
-
Next to the Deploy interface is the Docs interface. Documentation is an essential step in building a sustainable data architecture, but is sometimes put aside to focus on development work to meet deadlines. To help with this, Coalesce automatically generates and updates documentation as you work.
Install Iceberg and Cortex Packages from Coalesce Marketplace
In order to leverage Iceberg table functionality, we need to add Iceberg table nodes to our workspace. Using Coalesce Marketplace, we can easily install Iceberg nodes that will be immediately available to use, which will allow us to read in and manage data in Iceberg table format. Additionally, we will be working with a dataset that contains multiple languages in the form of call transcripts. We want to explore these transcripts further using Cortex LLM functions, so we’ll need to use the Cortex package from Coalesce Marketplace.
-

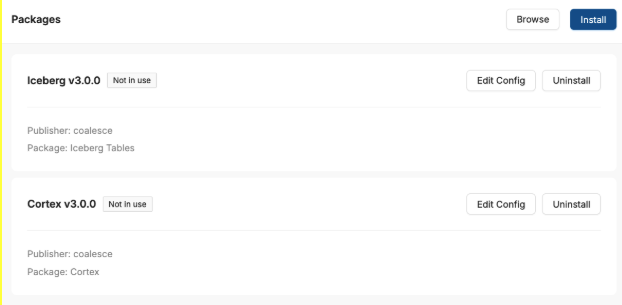

In the build interface, navigate to the build settings in the lower left corner of the screen.
-
Select Packages from the menu list presented.
-
Select the Browse button in the upper right corner of the screen. This will open a new tab for Coalesce Marketplace.
-
Navigate to the Iceberg package and select “Find out more”
-

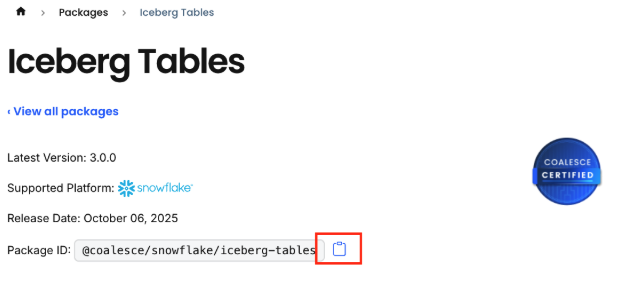

In the package details, find the Package ID and copy it.
-
Navigate back to Coalesce and select the Install button in the upper right corner of the screen.
-

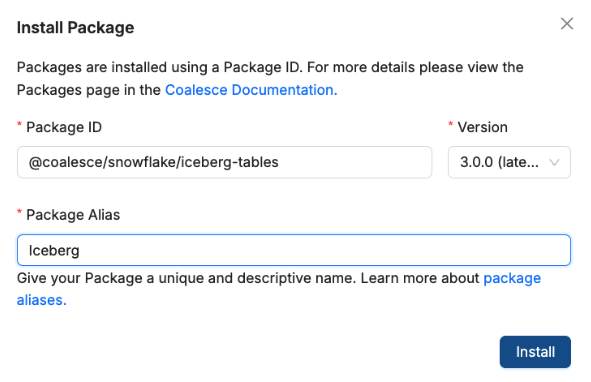

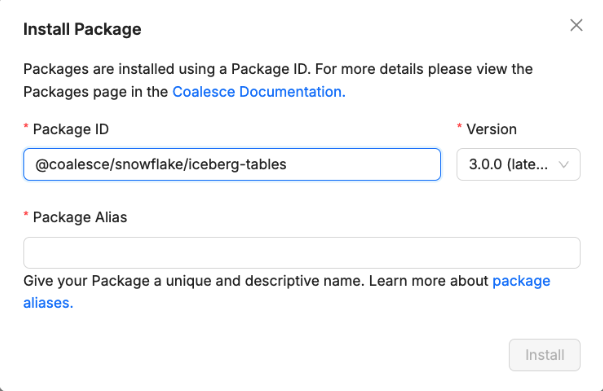

Paste in the Package ID into the Install Package modal. Coalesce will automatically select the most recent version of the package.
-
Provide a Package Alias. The Package Alias will be the name of the package as it is displayed within the Build Interface of Coalesce. In this case, we’ll call the package Iceberg.
-
Select Install once you have filled out all of the information in the modal.
-
Repeat these steps to install the Cortex Package and call the Package Alias CortexML.
11. Finally, within the Build settings of the workspace, navigate to Node Types and toggle on View.
Adding an Iceberg Table to a Pipeline
Let’s start to build the foundation of your LLM data pipeline by creating a Graph (DAG) and adding data in the form of Iceberg Tables.
-
Start in the Build interface and click on Nodes in the left sidebar (if not already open). Click the + icon and navigate to Create New Node → Iceberg → External Iceberg Table.
-
Coalesce will automatically open the Iceberg node which we can configure using the information from the SQL we ran in section 4 of the lab guide. Select the Iceberg Options dropdown from within the node.
-
For the Type of catalog dropdown, we will be using an AWS S3 bucket, so select Object Storage.
-
For the External Volume parameter, we will pass through the external volume that was created in section 4 of this lab guide. The external volume is called iceberg_external_volume.
-
For the Catalog Integration, again, we will use the name of the integration that we set up in section 4 of this lab guide. The catalog integration is called iceberg_catalog_integration.
-
Finally, for the Metadata file path, we will need to provide the metadata JSON file that contains the information to read in the parquet file containing our data. Copy and paste the metadata file path listed below into the parameter:
customer_transcripts/metadata/00001-6f7aba51-fd49-4d11-b659-17ddfd5e0686.metadata.json
-
Finally, toggle off the Schedule Refresh toggle, as we won’t be concerned for this lab with setting up this Iceberg table on a continual refresh, but note that we can schedule any Iceberg table with this functionality.
-
Rename the node to CALL_TRANSCRIPTS.
-
Select Create and then Run to create the object in Snowflake and populate it with the data in the Iceberg table format from S3.
-
With the data read from the S3 bucket, we can now resync the columns of the node to reflect the columns we have read in from the S3 bucket. Select the Re-Sync Columns button to do this.
11. You should now see all of the columns from the data source coming from the S3 bucket.
(Optional) Processing JSON As The Data Source
Instead of using Iceberg tables, you can easily ingest JSON files using Coalesce with just a few clicks. In this optional section, you can ingest the same call transcript data as a JSON file rather than iceberg.
-
Install the External Data Package like you would have with the Cortex or Iceberg Packages.
-
Let’s start to build the foundation of your LLM data pipeline by creating a Graph (DAG) and adding data from a Snowflake stage in JSON format.
-

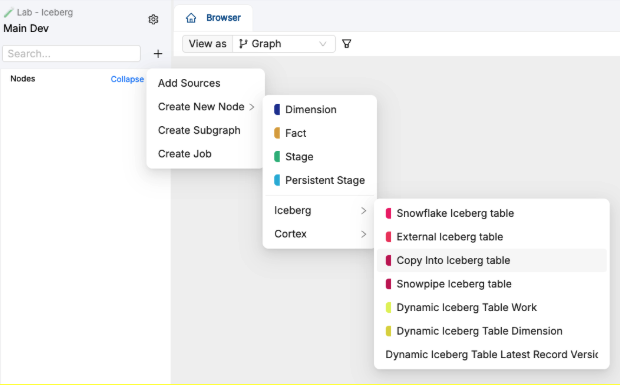

In the Build interface and click on Nodes in the left sidebar (if not already open). Click the + icon and navigate to Create New Node → EDP → Copy Into.
-
Coalesce will automatically open the Copy Into node which we can configure using the information from the SQL we ran in section 4 of the lab guide. Select the Source Data dropdown from within the node and toggle on Enternal or External Stage
-
We will fill out the parameters for this configuration. First, we need to supply the storage location of the stage. Which is the database and schema where the stage was created. In this case the storgae location name is CALLS.
-
For the Stage Name, we will input the name of the stage what we created in section 4 of the lab guide. In this case, cortex_iceberg_hol.
-
We won't be including a path of subfolder, so delete the text from this input box. For the File Name, input call_transcripts.json
📌 Note: Older versions of the External Data Package (EDP) may require single quotes ('') to be wrapped around the file name, such as 'call_transcripts.json'. If you are using an older version of the package and having issues loading the file, put the file name in single quotes.
-

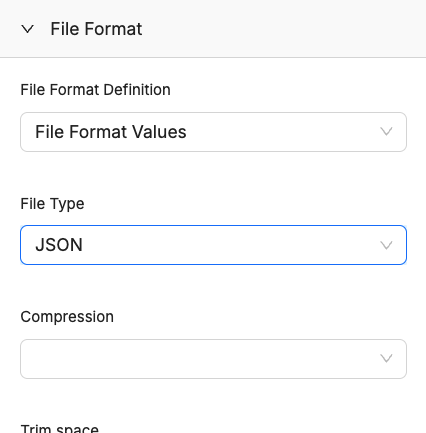

From here, the last thing we need to do is open the File Format dropdown. In the parameters of the dropdown, we first need to supply the storage location of our file format, which was created in section 4 of the lab guide. In this case, CALLS.
-
Next, supply the file format name which was also created in section 4 of the lab guide. In this case JSONFORMAT.
-
Change the File Type from CSV to JSON to match the file type we are loading from the Snowflake stage.
-

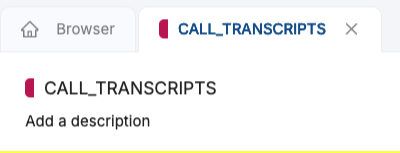

Finally, change the name of the node to CALL_TRANSCRIPTS and select Create to create an object in Snowflake which will contain the JSON for you to work with. Then click Run to populate the table with the JSON string.
Creating Stage Nodes
Now that you’ve added your Source node, let’s prepare the data by adding business logic with Stage nodes. Stage nodes represent staging tables within Snowflake where transformations can be previewed and performed. Let's start by adding a standardized "stage layer" for the data source.
-
Select the CALL_TRANSCRIPT source node then right click and select Add Node > Stage from the drop down menu. This will create a new stage node and Coalesce will automatically open the mapping grid of the node for you to begin transforming your data.
-
Within the Node, the large middle section is your Mapping grid, where you can see the structure of your node along with column metadata like transformations, data types, and sources.
-
On the right hand side of the Node Editor is the Config section, where you can view and set configurations based on the type of node you’re using.
-
At the bottom of the Node Editor, press the arrow button to view the Data Preview pane.
-
Rename the node to STG_CALL_TRANSCRIPTS_GERMAN
-
Within Coalesce, you can use the Transform column to write column level transformations using standard Snowflake SQL. We will transform the Category column to use an upper case format using the following function:
NEED THE SOURCE FUNCTION HERE
-
Coalesce also allows you to write as much custom SQL as needed for your business use case. In this case, we need to process French and German language records in separate tables so that we can pass each language to its own Cortex translation function and union the tables together.
To do this, navigate to the Join tab, where you will see the node dependency listed within the Ref function. Within the Join tab, we can write any Snowflake supported SQL. In this use case, we will add a filter to limit our dataset to only records with German data, using the following code snippet:
WHERE "LANGUAGE" = 'German'
-
Now that we have transformed and filtered the data for our German node, we now need to process our French data. Coalesce leverages metadata to allow users to quickly and easily build objects in Snowflake. Because of this metadata, users can duplicate existing objects, allowing everything contained in one node to be duplicated in another, including SQL transformations.

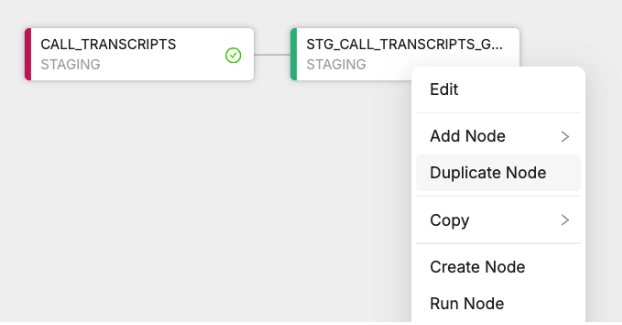

Navigate back to the Build Interface and right click on the STG_CALL_TRANSCRIPTS_GERMAN node and select duplicate node.
-
Double click on the duplicated node, and once inside the node, rename the node to STG_CALL_TRANSCRIPTS_FRENCH.
-
Navigate to the Join tab, where we will update the where condition to exclude any German data, so we can process the rest of the languages.
WHERE "LANGUAGE" <> 'German'
11. All the changes made from the STG_CALL_TRANSCRIPTS_GERMAN carry over into this node, so we don’t need to rewrite any of our transformations. Let’s change the view back to Graph and select Create All and then Run All
(Optional) Parsing JSON Data In Stage Nodes
Now that you’ve added your Source node, let’s prepare the data by adding business logic with Stage nodes. Stage nodes represent staging tables within Snowflake where transformations can be previewed and performed. Let's start by adding a standardized "stage layer" for the data source.
-

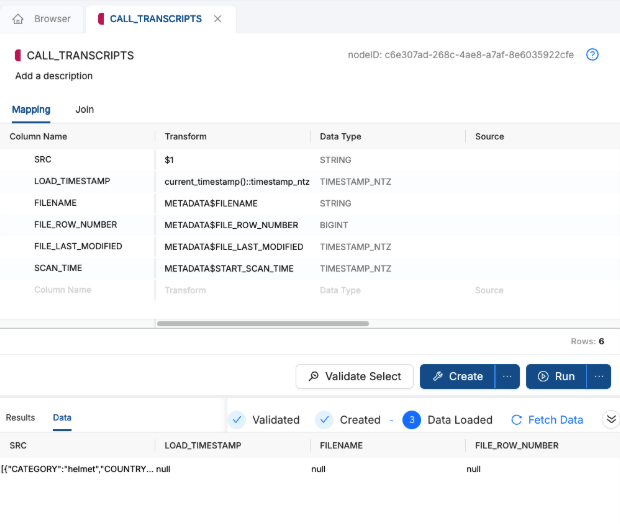

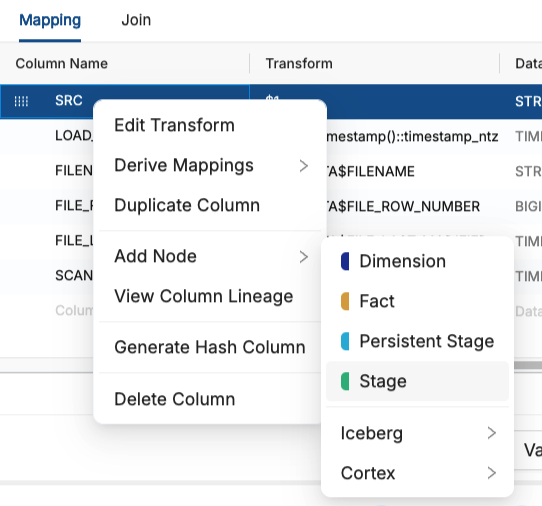

Select the CALL_TRANSCRIPT Copy Into node then right click and select Add Node > Stage from the drop down menu. This will create a new stage node and Coalesce will automatically open the mapping grid of the node for you to begin transforming your data.
-
Within the Node, the large middle section is your Mapping grid, where you can see the structure of your node along with column metadata like transformations, data types, and sources.
-
On the right hand side of the Node Editor is the Config section, where you can view and set configurations based on the type of node you’re using.
-
At the bottom of the Node Editor, press the arrow button to view the Data Preview pane.
-
Rename the node to STG_CALL_TRANSCRIPTS_GERMAN
-
Now that we know the components of our node, let's get working with our data. Coalesce has a powerful JSON parser build into every single column in Coalesce. In the previous section, we loaded the entire JSON string into the SRC column in our node. We can use the Coalesce JSON parser to create all of the unique columns from that string, without having to write a single line of code.

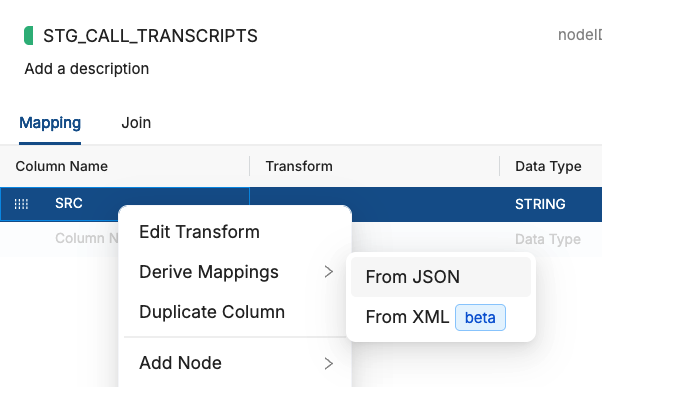

Right click on SRC column and select Derive Mappings > From JSON.
-

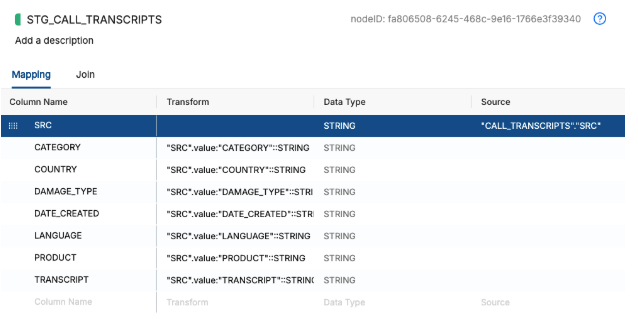

Coalesce will create a column for each of the key value pairs in the JSON string without writing a single ling of code. You can delete the metadata columns that were originally in the table by select the first column, holding down the shift key, and selecting the last column. Then, right click on any of the selected columns and select Delete Columns:
- SRC
- LOAD_TIMESTAMP
- FILENAME
- FILE_ROW_NUMBER
- FILE_LAST_MODIFIED
-
Now with our columns, we can write some SQL transformations. Coalesce also allows you to write as much custom SQL as needed for your business use case. In this case, we need to process French and German language records in separate tables so that we can pass each language to its own Cortex translation function and union the tables together.
To do this, navigate to the Join tab, where you will see the node dependency listed within the Ref function. Within the Join tab, we can write any Snowflake supported SQL. In this use case, we will add a filter to limit our dataset to only records with German data, using the following code snippet:
WHERE "LANGUAGE" = 'German'
-
Now that we have transformed and filtered the data for our German node, we now need to process our French data. Coalesce leverages metadata to allow users to quickly and easily build objects in Snowflake. Because of this metadata, users can duplicate existing objects, allowing everything contained in one node to be duplicated in another, including SQL transformations.
Navigate back to the Build Interface and right click on the STG_CALL_TRANSCRIPTS_GERMAN node and select duplicate node.
-
Double click on the duplicated node, and once inside the node, rename the node to STG_CALL_TRANSCRIPTS_FRENCH.
-

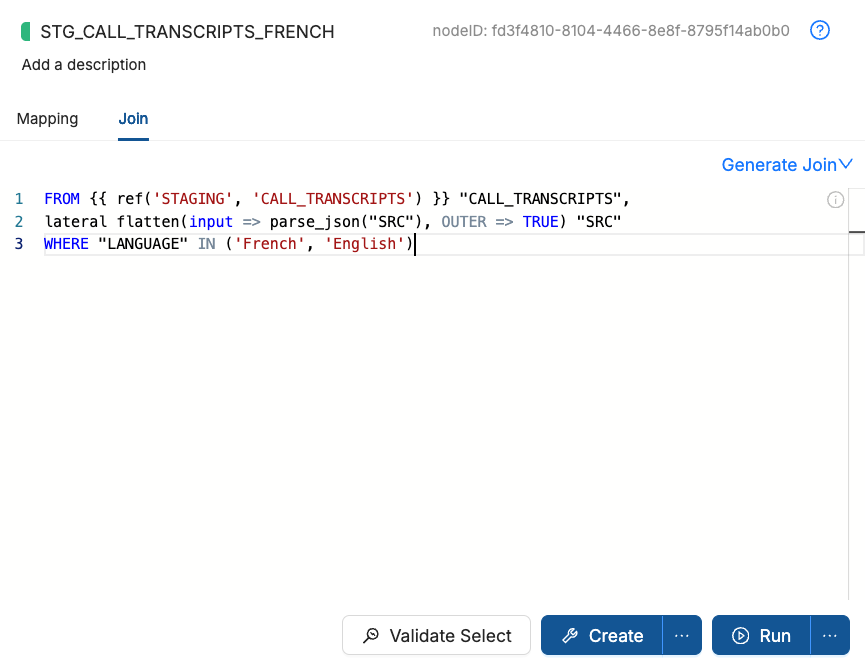

Navigate to the Join tab, where we will update the where condition to an IN to include both French and English data.
WHERE "LANGUAGE" <> 'German'
-
All the changes made from the STG_CALL_TRANSCRIPTS_GERMAN carry over into this node, so we don’t need to rewrite any of our transformations. Let’s change the view back to Graph and select Create All and then Run All
Translating Text Data with Cortex LLM Functions
Now that we have prepared the call transcript data by creating nodes for each language, we can now process the language of the transcripts and translate them into a singular language. In this case, English.
-

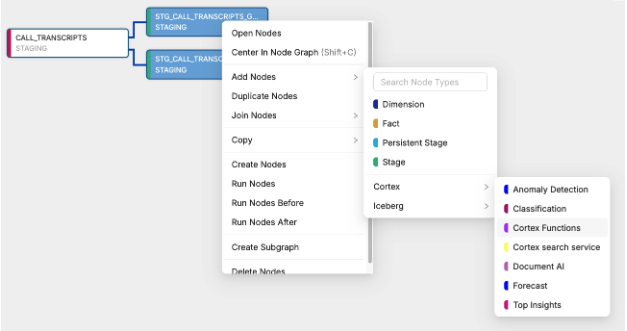

Select the STG_CALL_TRANSCRIPTS_GERMAN node and hold the Shift key and select the STG_CALL_TRANSCRIPTS_FRENCH node. Right click on either node and navigate to Add Node. You should see the Cortex package that you installed from the Coalesce Marketplace. By hovering over the Cortex package, you should see the available nodes. Select Cortex Functions. This will add the Cortex Function node to each STG node.
-
You now need to configure the Cortex Function nodes to translate the language of the transcripts. Double click on the LLM_CALL_TRANSCRIPTS_GERMAN node to open it.
-
In the configuration options on the right hand side of the node, open the Cortex Package dropdown and toggle on TRANSLATE.
-
With the TRANSLATE toggle on, In the column name selector dropdown, you need to select the column to translate. In this case, the TRANSCRIPT column.
-
Now that you have selected the column that will be translated, you will pass through the language you wish to translate from and the language you wish to translate to, into the translation text box. In this case, you want to translate from German to English. The language code for this translation is as follows:
'de', 'en'
-
Now that you have configured the LLM node to translate German data to English, you can click Create and Run to build the table in Snowflake and populate it with data.
-
While the LLM_CALL_TRANSCRIPT_GERMAN node is running, you can configure the LLM_CALL_TRANSCRIPT_FRENCH. Double click on the LLM_CALL_TRANSCRIPT_FRENCH node to open it.
-
Open the Cortex Package dropdown on the right hand side of the node and toggle on TRANSLATE.
-
Just like the German node translation, you will pass the TRANSCRIPT column through as the column you want to translate.
-
Finally, you will configure the language code for what you wish to translate the language of the transcript column from to the language you wish to translate to. In this case, the language code is as follows:
'fr', 'en'
Any values in the transcript field which do not match the language being translated from will be ignored. In this case, there are both French and English language values in the TRANSCRIPT field. Because the English values are not in French, they will automatically pass through as their original values. Since those values are already in English, they don’t require any additional processing.
11. Select Create and Run to build the object in Snowflake and populate it with data
Unifying the Translated Data
You have now processed the transcript data by translating the German and French transcripts into English. However, this translated data exists in two different tables, and in order to build an analysis on all of our transcript data, we need to unify the two tables together into one.
-
Select the LLM_CALL_TRANSCRIPTS_GERMAN node and Add Node > Stage.
-
Rename the node to STG_CALL_TRANSCRIPTS_ALL.
-
In the configuration options on the right hand side of the node, open the options dropdown and toggle on Multi Source.
-
Multi Source allows you to union together nodes with the same schema without having to write any of the code to do so. Click on the Multi Source Strategy dropdown and select UNION ALL.
-
There will be a union pane next to the columns in the mapping grid that will list all of the nodes associated with the multi source strategy of the node. Click the + button to add a node to union to the current node. You will see a new node get added to the pane called New Source.
-
Within this new source, there is an area to drag and drop any node from your workspace into the grid to automatically map the columns to the original node. Make sure you have the Nodes navigation menu item selected so you can view all of the nodes in your project.
-
You will now drag and drop the LLM_CALL_TRANSCRIPTS_FRENCH node into the multi source mapping area of the node. This will automatically map the columns to the original node, in this case LLM_CALL_TRANSCRIPTS_GERMAN.
-
Finally, select the join tab to configure the reference of the node we are mapping. Using metadata, Coalesce is automatically able to generate this reference for you. Hover over the Generate Join button and select Copy to Editor. Coalesce will automatically insert the code into the editor, and just like that, you have successfully created a union for the two datasets without writing a single line of code.
-
Select Create and Run to build the object and populate it with data.
Sentiment Analysis and Finding Customers
Now that we have all of our translated transcript data in the same table, we can now begin our analysis and extract insights from the data. For the sake of our use case, we want to perform a sentiment analysis on the Transcript, to understand how each of our customers felt during their interaction with our company.
Additionally, our call center reps are trained to ask for the customer’s name when someone calls into the call center. Since we have this information, we want to extract the customer name from the transcript so we can associate the sentiment score with our customer to better understand their experience with our company.
-
Right click on the STG_CALL_TRANSCRIPTS_ALL node and we will add one last Cortex Function node. Add Node > CortexML > Cortex Functions.
-
Within the node click on the Cortex Package dropdown and toggle on SENTIMENT and EXTRACT ANSWER.
-
When cortex functions are applied to a column, they overwrite the preexisting values of the column. Because of this, you will need two transcript columns to pass through to your two functions. One to perform the sentiment analysis, and one to extract the customer name from the transcript. Right click on the TRANSCRIPT column and select Duplicate Column.
-
Double click on the original TRANSCRIPT column name and rename the column to TRANSCRIPT_SENTIMENT.
-
Double click on the duplicated TRANSCRIPT column name and rename the column to TRANSCRIPT_CUSTOMER.
-
Next, double click on the data type value for the TRANSCRIPT_CUSTOMER column. Change the data type to ARRAY. This is necessary because the output of the EXTRACT ANSWER function is an array that contains JSON values from the extraction.
-
Now that your columns are ready to be processed, we can pass them through to each function in the Cortex Package. For the SENTIMENT ANALYSIS, select the TRANSCRIPT_SENTIMENT column as the column name.
-
For the EXTRACT ANSWER function, select the TRANSCRIPT_CUSTOMER column as the column name.
-
The EXTRACT ANSWER function accepts a plain text question as a parameter to use to extract the values from the text being processed. In this case, we’ll ask the question “Who is the customer?”
-
With the node fully configured to process our sentiment analysis and answer extraction, you can Create and Run the node to build the object and populate it with the values being processed.
Process and Expose results with a View
You have now used Cortex LLM Functions to process all of your text data without writing any code to configure the cortex functions, which are now ready for analysis. Let’s perform some final transformations to expose for your analysis.
-
Right click on the LLM_CALL_TRANSCRIPTS_ALL node and Add Node > View.
-
Select the Create button and then Fetch Data. You will see the output from our LLM functions is the sentiment score and an array value containing a customer value with a confidence interval. We want to be able to extract the customer name out of the array value so we can associate the sentiment score with the customer name.
Right click on the TRANSCRIPT_CUSTOMER column and hover over Derive Mappings and select From JSON.
-
You will see two new columns automatically created. Answer and score. The answer column contains our customer name. Double click on the answer column name and rename it to CUSTOMER.
-
Rename the score column to CONFIDENCE_SCORE.
-
Rerun the view by selecting Create, which will automatically rerun the query that generates the view, which will contain the updated CUSTOMER column we just created.
Output the View in Iceberg Format
We now have a view that creates an output that can be used by our organization in a variety of ways. In some cases, other systems in our organization may need access to this output in order to allow our company to make decisions. In this case, we can allow everyone to operate on a single copy of data, by using Iceberg tables to output this data.
-

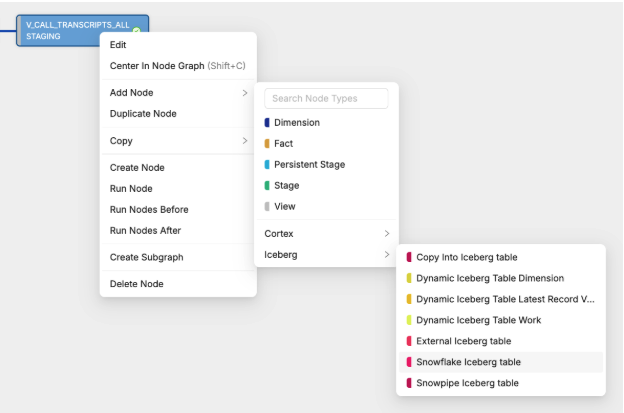

Select the V_CALL_TRANSCRIPTS_ALL node and right click on the node. Select Add Node → Iceberg → Snowflake Iceberg Table. This will create a Snowflake managed Iceberg table in your object storage location.
-
Within the mapping grid, delete the TRANSCRIPT_CUSTOMER column which is an array data type, as Iceberg tables do not support array data types.
-

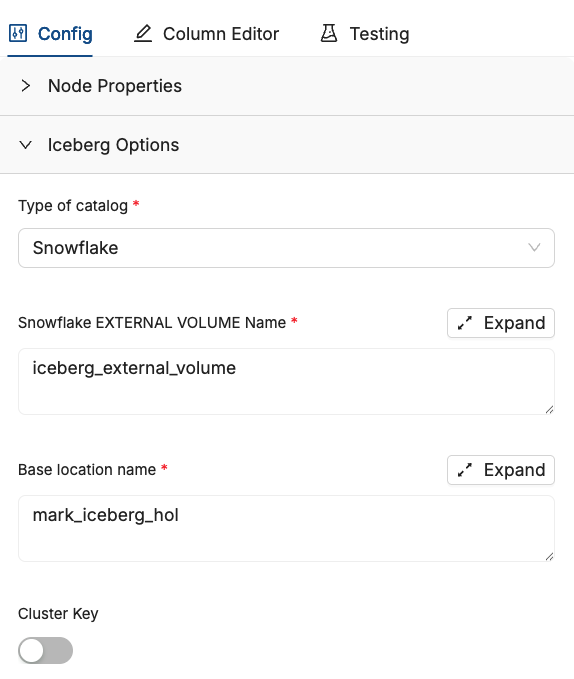

Within the node config options, select the Iceberg Options dropdown.
-
For the External Volume, pass through the external volume that was configured in step 4 of the lab guide:
iceberg_external_volume
-
Next, provide a base location name to the base location parameter. This will be the folder location within S3 that the table will be created. For the sake of this lab, use your first name and iceberg_hol as the location name so everyone has their own separate folder, such as firstname_iceberg_hol.
-
Select Create and Run to create and populate the Snowflake managed table within S3.
Conclusion and Next Steps
Congratulations on completing your lab. You've mastered the basics of building and managing Snowflake Cortex LLM functions in Coalesce and can now continue to build on what you learned. Be sure to reference this exercise if you ever need a refresher.
We encourage you to continue working with Coalesce by using it with your own data and use cases and by using some of the more advanced capabilities not covered in this lab.
What we’ve covered
- How to navigate the Coalesce interface
- How to load Iceberg tables into your project
- How to add data sources to your graph
- How to prepare your data for transformations with Stage nodes
- How to union tables
- How to set up and configure Cortex LLM Nodes
- How to analyze the output of your results in Snowflake
Continue with your free trial by loading your own sample or production data and exploring more of Coalesce’s capabilities with our documentation and resources. For more technical guides on advanced Coalesce and Snowflake features, check out Snowflake Quickstart guides covering Dynamic Tables and Cortex ML functions.
Additional Coalesce Resources
Reach out to our sales team at coalesce.io or by emailing sales@coalesce.io to learn more.
