PostGres

It's time to start the technical onboarding with Catalog. It's pretty simple; you need to grant access to your Postgres metadata to Catalog and to perform a couple of tests.

What is required to complete the onboarding ?

You need certain qualifications to complete the onboarding. You should be

  • 🧑‍💻 A super user with the ability to impersonate all schema owners
  • 🕙 Your Postgres version should be ≥ 11

When new schemas are created, part of the process will need to be repeated

What will Catalog do with this access ?

  • 🔒 Catalog will only be granted USAGE on all schemas and REFERENCE on all tables. It is the minimum role for Catalog to read your metadata without accessing your data.

Need some more info ?

  • 🔑 Privileges and access documentation is here
  • 💁 User creation and access to system table is here

1. Whitelist Catalog's IP on Postgres​

To allow Catalog to connect to Postgres, you will first need to whitelist Catalog's IP address.

Here are our fixed IPs:

Catalog connects directly to your Postgres databases. As such, it needs to be public. It is frequent that our clients provides Catalog an access to an exact replica of their database.

2. Create Catalog User on Postgres​

You are asked to enter credentials in Catalog's app Interface. Here is a step-by-step guide to create them. You can run the SQL code below.

[Find the whole procedure here]

2.1 Create procedure to grant rights on current content​

  • The procedure grants USAGE, CREATE, REFERENCES rights to a user on existing content
  • CREATE rights are required to allow REFERENCES to work
  • REFERENCES are required for Catalog to see column names

❗️Catalog will not be creating schemas or referencing foreign keys with these rights

CREATE OR REPLACE PROCEDURE grant_rights_schema_today(user_name VARCHAR)
AS $$
DECLARE
    row record;
    sch text;
BEGIN
    FOR row IN (
        SELECT nspname
        FROM pg_namespace
        WHERE nspname NOT LIKE 'pg_%'
            AND nspname != 'information_schema'
    ) LOOP
        sch := row.nspname;
        EXECUTE 'GRANT USAGE ON SCHEMA ' || sch || ' TO "' || user_name || '"';
        EXECUTE 'GRANT CREATE ON SCHEMA ' || sch || ' TO "' || user_name || '"';
        EXECUTE 'GRANT REFERENCES ON ALL TABLES IN SCHEMA ' || sch || ' TO "' || user_name || '"';
    END LOOP;
END;
$$ LANGUAGE plpgsql;

2.2 Create procedure to grant rights on future content​

  • The procedure extends the rights given in the procedure in 2.1 to future content
  • For each schema you'll impersonate the schema owner as only he can execute such procedure
CREATE OR REPLACE PROCEDURE grant_rights_schema_future(user_name VARCHAR)
AS $$
DECLARE
    row record;
    usr text;
    sch text;
BEGIN
    FOR row IN (
        SELECT distinct tableowner,schemaname
        FROM pg_tables
        WHERE schemaname not LIKE 'pg_%'
            AND schemaname != 'information_schema'
						AND tableowner != 'rdsadmin'
    ) LOOP
        sch := row.schemaname;
        usr := row.tableowner;
        EXECUTE 'ALTER DEFAULT PRIVILEGES FOR USER "' || usr || '" IN SCHEMA ' || sch
            || ' GRANT REFERENCES ON TABLES TO "' || user_name || '"';
    END LOOP;
END;
$$ LANGUAGE plpgsql;

Here is an example of a statement of the loop, for schema tesla own by user elon: ALTER DEFAULT PRIVILEGES FOR USER elon IN SCHEMA tesla GRANT REFERENCES ON TABLES TO catalog

2.3 Create Catalog User​

Use a safe password, from a password manager for example.

Password should not include @ or :.

CREATE USER "catalog"
	PASSWORD '<password>';

2.4 Grant rights to Catalog user​

You can finally grant rights to Catalog user with procedures defined in 2.1 and 2.2

❗️ You will have to run these commands every time a new schema is created

CALL grant_rights_schema_today('catalog');
CALL grant_rights_schema_future('catalog');

3. Test the Catalog User​

The Catalog User should now be correctly set up. Before you give Catalog the credentials, let's first run a test to make sure everything works well.

  1. Connect to your Postgres cluster using the catalog credentials you've just created
  2. Run the following checks:

3.1 Check schemas the Catalog user can see​

SELECT
    db.oid AS database_id,
    db.datname AS database_name,
    n.oid::TEXT AS schema_id,
    n.nspname AS schema_name,
    u.usename AS schema_owner,
    u.usesysid AS schema_owner_id,
    sd.description AS comment
FROM pg_catalog.pg_namespace AS n
CROSS JOIN pg_catalog.pg_database AS db
JOIN pg_catalog.pg_user u ON u.usesysid = n.nspowner
LEFT JOIN pg_catalog.pg_description sd ON sd.classoid = n.oid
WHERE TRUE
    AND db.datname = CURRENT_DATABASE()
    AND n.nspname NOT LIKE 'pg_%%'
    AND n.nspname NOT IN ('catalog_history', 'information_schema')

You should get all of your Postgres schemas.

4. Add new credentials in Catalog App​

info

You must a Catalog admin to do it.

You can now enter the newly created credentials in the Catalog App here.

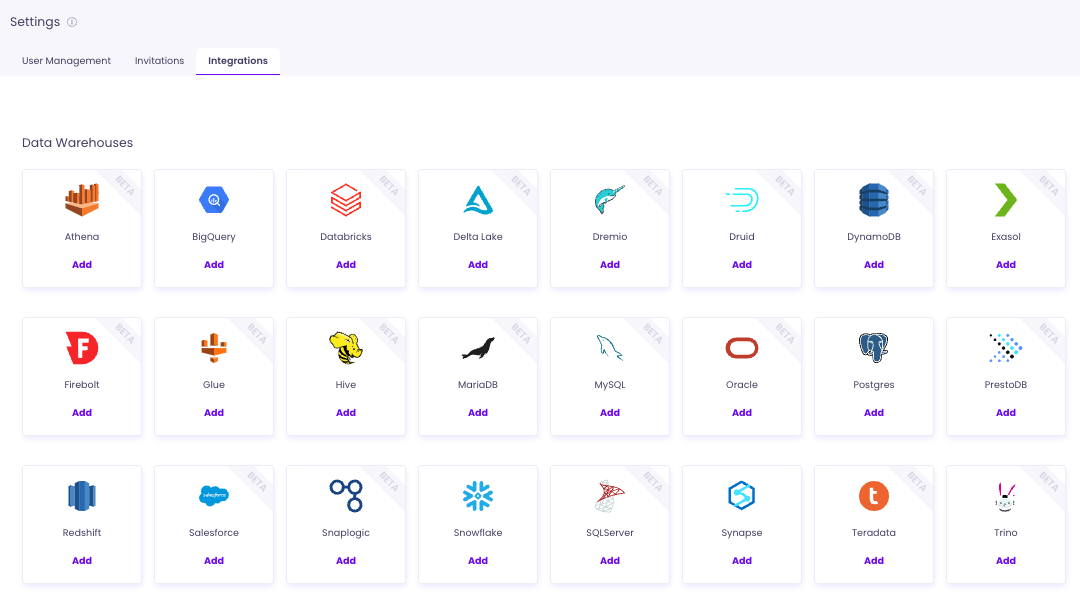

  • Go to "Settings > Integrations"
  • Click on "Postgres Add"
  • Add the credentials

Appendix​

Full code​

CREATE OR REPLACE PROCEDURE grant_rights_schema_today(user_name VARCHAR)
AS $$
DECLARE
    row record;
    sch text;
BEGIN
    FOR row IN (
        SELECT nspname
        FROM pg_namespace
        WHERE nspname NOT LIKE 'pg_%'
            AND nspname != 'information_schema'
    ) LOOP
        sch := row.nspname;
        EXECUTE 'GRANT USAGE ON SCHEMA ' || sch || ' TO "' || user_name || '"';
        -- Create is needed references to work
        EXECUTE 'GRANT CREATE ON SCHEMA ' || sch || ' TO "' || user_name || '"';
				-- References allow the catalog user to see columns names
				-- It also allows it to reference foreign keys, but we will never do that
        EXECUTE 'GRANT REFERENCES ON ALL TABLES IN SCHEMA ' || sch || ' TO "' || user_name || '"';
    END LOOP;
END;
$$ LANGUAGE plpgsql;

-- This second procedures ensure that the catalog
-- user can get meta data on FUTURE content.
-- Such grant must be done by the future CREATOR
CREATE OR REPLACE PROCEDURE grant_rights_schema_future(user_name VARCHAR)
AS $$
DECLARE
    row record;
    usr text;
    sch text;
BEGIN
    FOR row IN (
        SELECT distinct tableowner,schemaname
        FROM pg_tables
        WHERE schemaname not LIKE 'pg_%'
            AND schemaname != 'information_schema'
						AND tableowner != 'rdsadmin'
    ) LOOP
        sch := row.schemaname;
        usr := row.tableowner;
        EXECUTE 'ALTER DEFAULT PRIVILEGES FOR USER "' || usr || '" IN SCHEMA ' || sch
            || ' GRANT REFERENCES ON TABLES TO "' || user_name || '"';
    END LOOP;
END;
$$ LANGUAGE plpgsql;

-- Create user with syslog access
CREATE USER "catalog"
	PASSWORD '<password>'

-- Grant usage on all schemas
-- You will need to run this everytime a new a new schema is added
CALL grant_rights_schema_today('catalog');
CALL grant_rights_schema_future('catalog');

Queries run by Catalog​

Information below concerns the queries Catalog will run on Postgres with the rights granted above. We only extract metadata (columns, schemas, tables, roles).

  • Databases
    SELECT
        db.oid AS database_id,
        db.datname AS database_name,
        de.description AS "comment"
    FROM pg_catalog.pg_database AS db
        LEFT JOIN pg_catalog.pg_description AS de ON de.classoid = db.oid
    WHERE db.datname = CURRENT_DATABASE()
  • Schemas
    SELECT
        db.oid AS database_id,
        db.datname AS database_name,
        ns.oid::TEXT AS schema_id,
        ns.nspname AS schema_name,
        u.usename AS schema_owner,
        u.usesysid AS schema_owner_id,
        de.description AS "comment"
    FROM pg_catalog.pg_namespace AS ns
        CROSS JOIN pg_catalog.pg_database AS db
        JOIN pg_catalog.pg_user AS u ON u.usesysid = ns.nspowner
        LEFT JOIN pg_catalog.pg_description AS de ON de.classoid = ns.oid
    WHERE TRUE
        AND db.datname = CURRENT_DATABASE()
        AND ns.nspname NOT LIKE 'pg_%%'
        AND ns.nspname NOT IN ('catalog_history', 'information_schema')
  • Tables
    WITH ids AS (
        SELECT
            t.oid AS table_id,
            t.relname AS table_name,
            n.nspname AS schema_name,
            n.oid AS schema_id,
            u.usename AS table_owner,
            t.relowner AS table_owner_id,
            td.description AS "comment",
            t.reltuples::BIGINT AS tuples
        FROM pg_class AS t
            JOIN pg_catalog.pg_namespace AS n ON n.oid = t.relnamespace
            LEFT JOIN pg_catalog.pg_description AS td ON td.objoid = t.oid AND td.objsubid = 0
            LEFT JOIN pg_catalog.pg_user AS u ON u.usesysid = t.relowner
        WHERE TRUE
            AND n.nspname NOT LIKE 'pg_%%'
            AND n.nspname NOT IN ('catalog_history', 'information_schema')
            AND t.relam IN (0, 2)
    ),

    meta AS (
        SELECT
            db.datname AS database_name,
            db.oid AS database_id,
            t.table_schema AS schema_name,
            t.table_name AS table_name,
            t.table_type
        FROM information_schema.tables AS t
            CROSS JOIN pg_catalog.pg_database AS db
        WHERE TRUE
            AND db.datname = CURRENT_DATABASE()
            AND t.table_schema NOT LIKE 'pg_%%'
            AND t.table_schema NOT IN ('catalog_history', 'information_schema')
    )

    SELECT
        m.database_name,
        m.database_id,
        m.schema_name,
        i.schema_id,
        m.table_name,
        i.table_id,
        m.table_type,
        i.table_owner,
        i.table_owner_id,
        i.tuples,
        i.comment
    FROM meta AS m
        JOIN ids AS i ON (i.table_name = m.table_name AND i.schema_name = m.schema_name)
  • Columns
    WITH ids AS (
        SELECT
            d.datname AS database_name,
            d.oid AS database_id,
            t.oid AS table_id,
            t.relname AS table_name,
            n.nspname AS schema_name,
            n.oid AS schema_id
        FROM
            pg_class AS t
            JOIN pg_catalog.pg_namespace AS n ON n.oid = t.relnamespace
            CROSS JOIN pg_catalog.pg_database AS d
        WHERE
            TRUE
            AND d.datname = CURRENT_DATABASE()
            AND n.nspname NOT LIKE 'pg_%%'
            AND n.nspname NOT IN ('catalog_history', 'information_schema')
            AND t.relam IN (0, 2)
    ),

    columns AS (
        SELECT
            ids.database_name,
            ids.database_id,
            c.table_schema AS schema_name,
            ids.schema_id,
            c.table_name AS table_name,
            ids.table_id,
            c.column_name,
            ids.table_id || '.' || c.column_name AS column_id,
            c.data_type,
            c.ordinal_position,
            c.column_default,
            c.is_nullable,
            c.character_maximum_length,
            c.character_octet_length,
            c.numeric_precision,
            c.numeric_precision_radix,
            c.numeric_scale,
            c.datetime_precision,
            c.interval_precision,
            c.interval_type,
            c.interval_precision,
            d.description AS "comment"
        FROM
            information_schema.columns AS c
            JOIN ids ON c.table_schema = ids.schema_name
                        AND c.table_name = ids.table_name
            LEFT JOIN pg_catalog.pg_description AS d ON d.objoid = ids.table_id
                                                        AND d.objsubid = c.ordinal_position
    )

    SELECT
        *
    FROM
        columns
  • Users
    SELECT
        usename AS user_name,
        usesysid AS user_id,
        usecreatedb AS has_create_db,
        usesuper AS is_super,
        valuntil AS valid_until
    FROM pg_catalog.pg_user
  • Groups
    SELECT
        groname AS group_name,
        grosysid AS group_id,
        grosysid AS group_list
    FROM pg_group

References​

Here's a list of all the PostGres documentation referenced above

  • Privileges and access documentation: click here
  • User creation and access to system table: click here
