Node Type V2

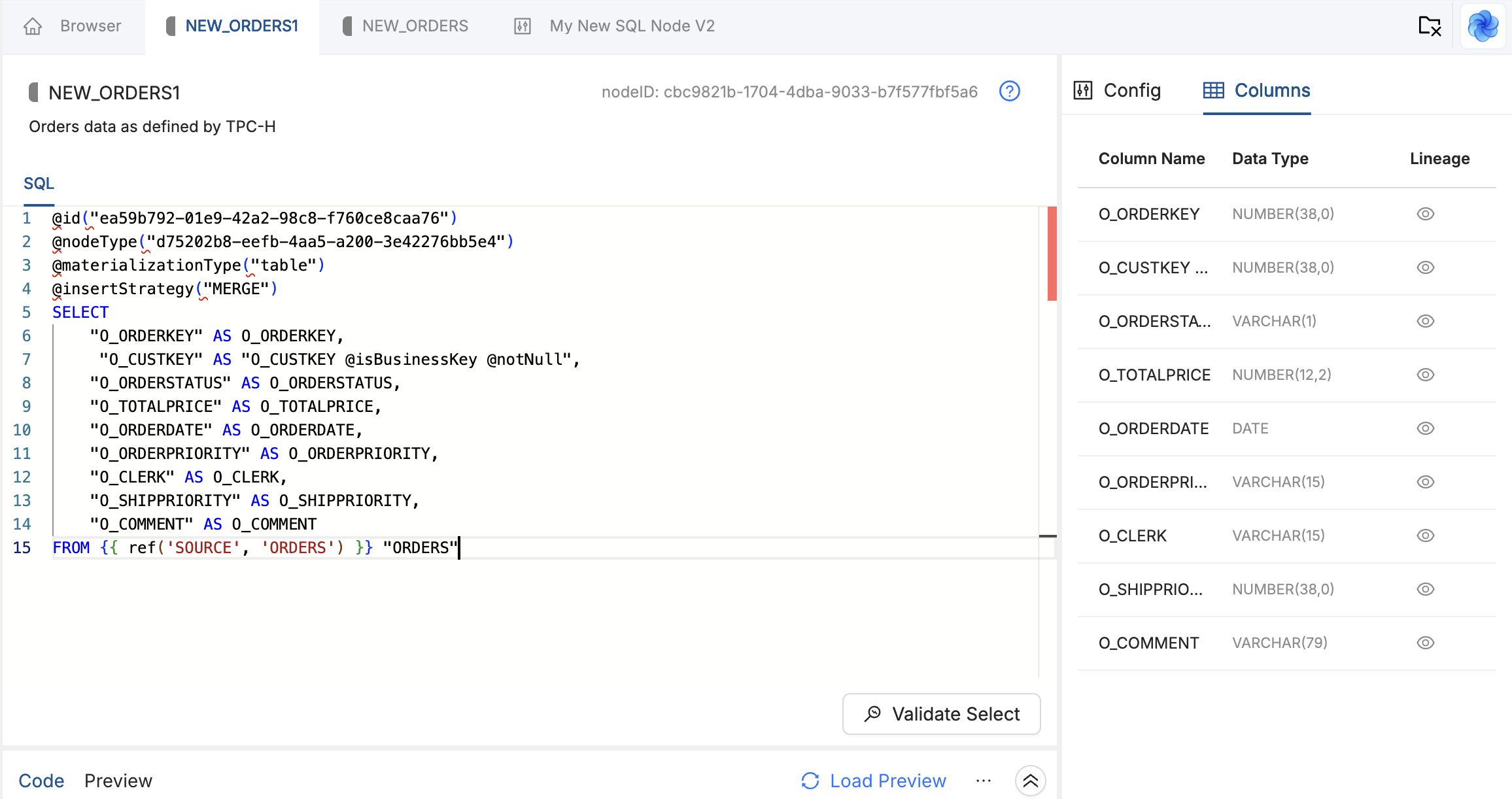

Node Type V2 is a SQL-first authoring experience. You write a SQL SELECT in the Coalesce editor, in an IDE, or with an AI assistant. Coalesce infers columns, data types, and upstream dependencies. Options that used to live in the Config panel are expressed as inline annotations in the SQL file.
When V2 Fits Your Workflow
The mapping grid still works well for visual, low-code modeling. Choose V2 when SQL is the natural starting point:
- Migrating SQL into Coalesce - Bring existing SQL, dbt models, or stored procedure logic without splitting it into per-column mappings.
- CTE-heavy logic - Represent CTEs inside a single Node, which the mapping grid does not support.
- AI-generated SQL - Check in full
SELECTstatements and keep lineage and governance in Coalesce. - Code-first workflows - Version transformations as plain
.sqlfiles next to the rest of your code.
How V1 and V2 Differ
Use this table to compare authoring and storage. Execution, templates, and pipeline behavior are covered in the next section.
| V1 Node Type | Node Type V2 | |
|---|---|---|
| Authoring | Mapping grid | SQL editor |
| File format | .yml | .sql |
| Column definition | Manually mapped in the grid | Inferred from your SELECT clause (column list is read-only in the UI) |
| Source dependencies | Selected in the UI | Declared with {{ ref() }} in SQL |
| Configuration | Config panel | Inline SQL annotations (see SQL Annotations Reference) |
| CTE support | Not available inside a single Node | Supported natively |
| Node type specs | Config items allowed in the spec | Config items are not allowed; Coalesce enforces this at save time |
V1 and V2 coexist in the same Workspace and pipeline. You choose the version per Node type, and {{ ref() }} works the same whether the upstream Node is V1 or V2.
The older inputMode: 'sql' setting on V1 Node type definitions is deprecated and will be removed in a future release. Node types that use it show a deprecation warning in the Coalesce App. See Upgrading from V1 to V2 Node Types to migrate.
What Stays the Same in Your Pipeline
Templates (Create, Run, Join, Macro), deployment, execution, DAG and column-level lineage, testing, and governance policies work the same as for other Node types.
Data Platform Support
Node Type V2 is supported on Snowflake.
What's Next?
- The V2 Editor for a tour of the interface.
- Getting Started with Node Type V2 to create your first V2 Node type and Node.
- SQL Annotations Reference to configure materialization, incremental behavior, and other options in SQL.
- Upgrading from V1 to V2 Node Types if you need to leave deprecated
inputMode: 'sql'. - Troubleshooting and FAQ for common authoring issues.
