Build a Metrics Engine for Site Cost Reporting

Introduction

Monthly site cost reporting often depends on hundreds of KPIs with layered formulas, manual adjustments, and a flat table that an existing BI semantic model already expects. Hard-coding every formula in one SQL script does not scale when formulas change, dependencies deepen, or finance needs an auditable adjustment trail.

This guide shows how to model that pattern in Coalesce on Databricks: input values at a consistent grain, a KPI catalog that stores formula and dependency metadata, an engine Node that calculates KPI values in SQL, joins the catalog to apply adjustments only where allowed, and a flat presentation table for BI.

When Catalog-Driven Metrics Help

A catalog-driven metrics engine is a strong fit when:

• Many KPIs share the same grain, for example period, site, and location, and you want formula and dependency metadata stored as data for governance.
• Formulas change over time and you want to update metadata instead of rewriting dozens of Nodes.
• Manual adjustments must be auditable and must not replace the engine formula output.
• Downstream BI still expects a flat table even if the engine stores metrics in long form.

Prefer simpler Stage or Fact Nodes with fixed SQL when you only have a handful of stable metrics and no adjustment workflow.

Recommended Pattern

Keep these layers separate:

1. Inputs - values extracted from source systems at engine grain.
2. KPI catalog - formula definitions, dependency edges, and whether each KPI is adjustable as data.
3. Adjustments - optional deltas from an adjustments application.
4. Engine output - long-form KPI values with both engine and final amounts.
5. Presentation - reshape for the existing BI model.

This guide calculates KPI math in SQL that mirrors the catalog formulas. Production engines often evaluate formula_expr dynamically in dependency order. Here the catalog still drives which KPIs exist and which ones may receive adjustments.

Avoiding Common Mistakes

Keep these constraints in mind as you build:

• Do not overwrite formula results with adjusted values only. Always retain engine_value and apply adjustment_delta.
• Do not put a top-level WITH as the entire Join string. Wrap CTEs in FROM ( … ) src.

What You Will Build

When you finish this guide, you will have:

• 3 Sources: store_sales, date_dim, and store
• stg_input_values with long-form IN_SALES, IN_UNITS, and IN_COGS by store and month
• ref_kpi_catalog with 4 sample KPIs, formulas, dependency metadata, and whether each KPI is adjustable
• ref_adjustments with synthetic adjustment deltas for an adjustable KPI
• fct_kpi_values with engine_value, adjustment_delta, and final_value

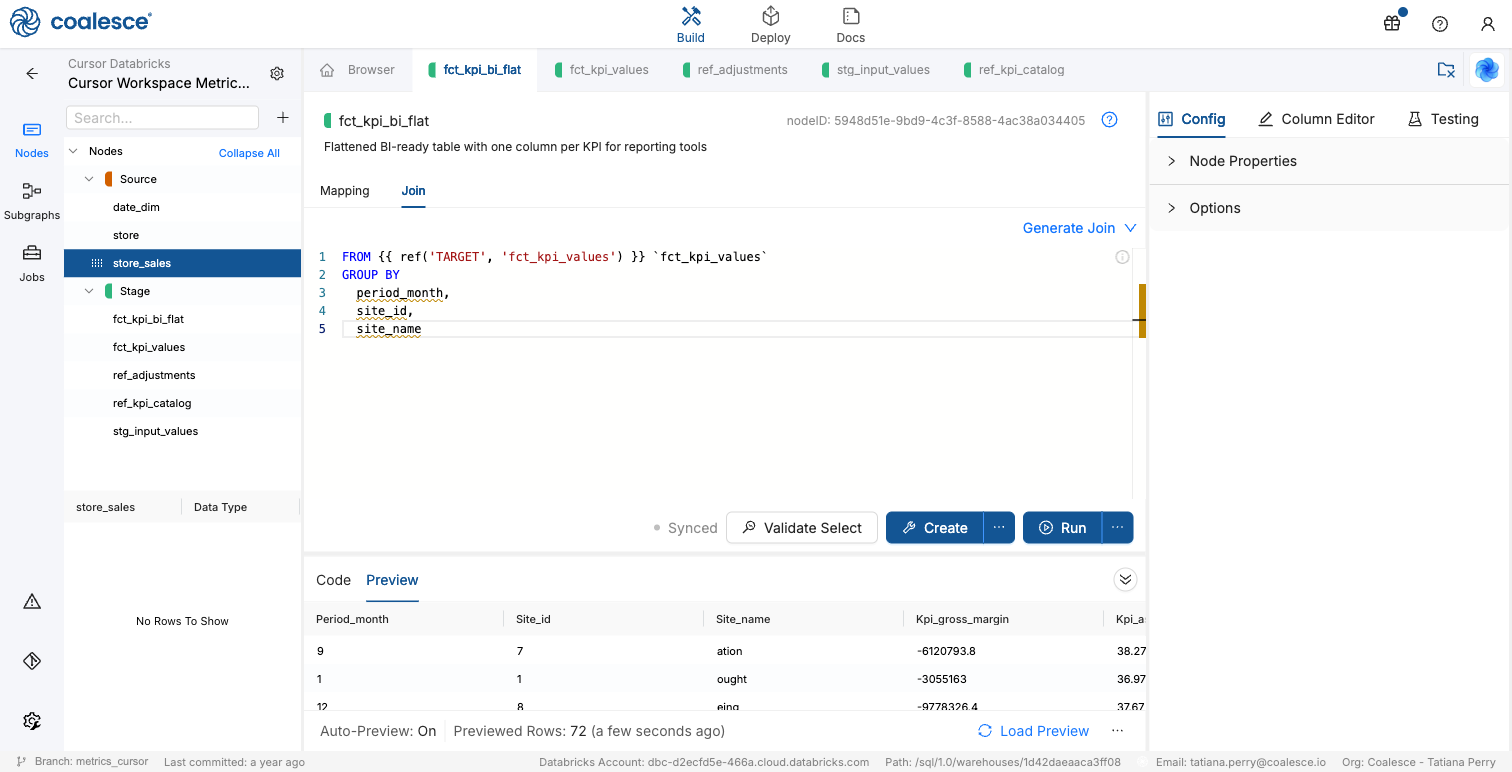

• fct_kpi_bi_flat with one column per KPI for BI-style consumption

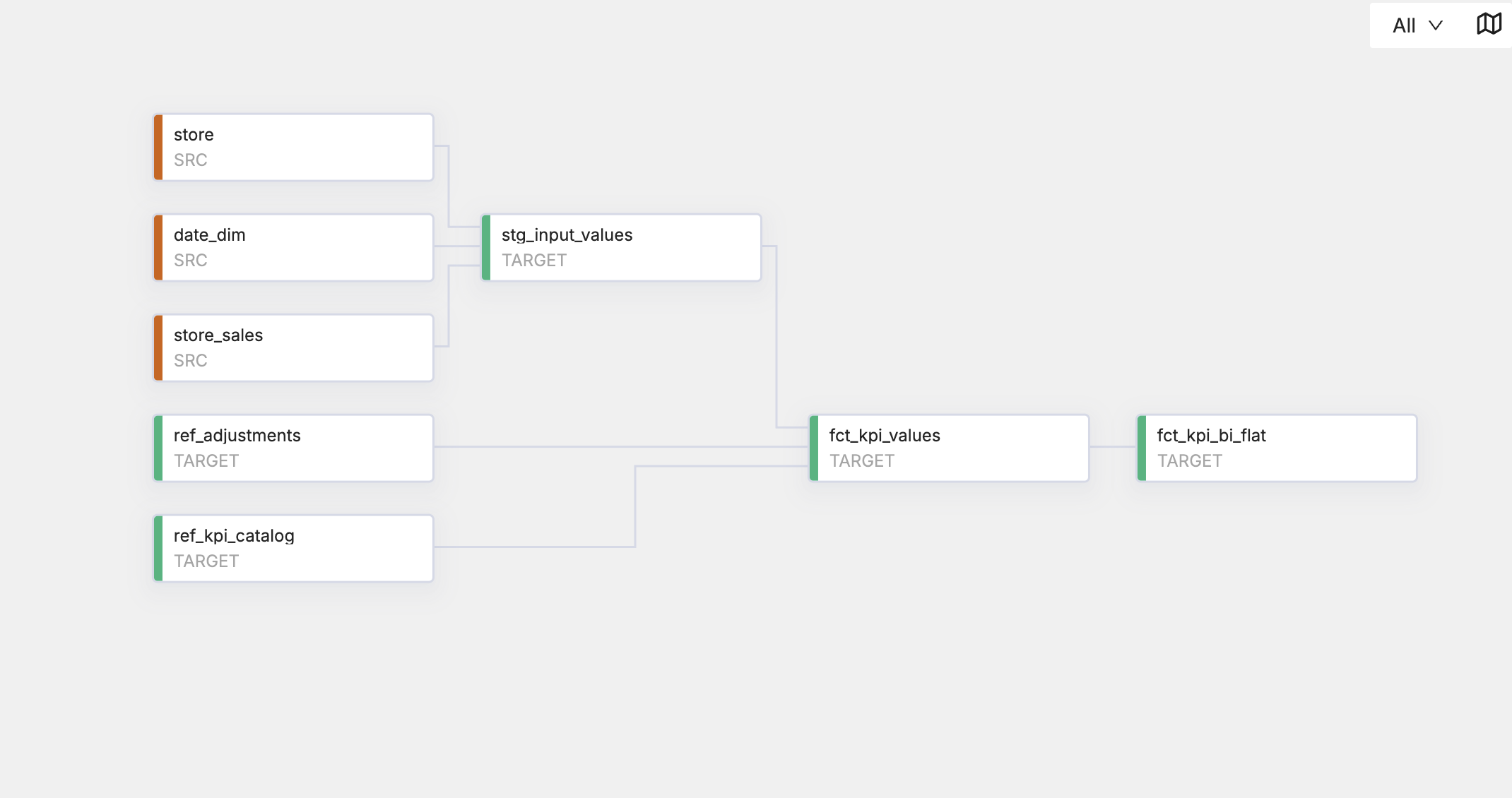

How the Pipeline Fits Together

Node	Node Type	What it does
store_sales, date_dim, store	Source	TPC-DS facts and dimensions that supply raw sales, costs, and store attributes.
stg_input_values	Stage	Aggregates year 2001 store sales by month and produces 3 long-form input metrics.
ref_kpi_catalog	Stage	Seeds KPI ids, formula text, depends_on edges, and is_adjustable. The engine joins this table so only adjustable KPIs accept deltas.
ref_adjustments	Stage	Seeds manual adjustment deltas keyed by KPI, month, and site.
fct_kpi_values	Stage	Pivots inputs, calculates KPIs in SQL, joins the catalog and adjustments, and sets final_value = engine_value + adjustment_delta.
fct_kpi_bi_flat	Stage	Pivots KPI final values into 1 wide row per site and month for BI.

This lab uses Stage Nodes for every layer so you can focus on the Join and Mapping pattern. In production, review Choosing the Right Node for Fact, View, Dimension, Work, and platform Base or Functional Node Types that may fit inputs, facts, and presentation tables better.

Before You Begin

• A Coalesce account with a Databricks connection configured. See the Databricks Connection Guide.
• A Project and Workspace you have edit permissions on.
• Access to Unity Catalog samples.tpcds_sf1, which is included in Unity Catalog-enabled Databricks workspaces.
• Storage Locations for SRC, mapped to the sample catalog, and TARGET, mapped to a writable schema such as your development schema.
• This guide uses Databricks Unity Catalog sample data in samples.tpcds_sf1 as a stand-in for operational source systems. Store locations play the role of sites.

Step 1: Add TPC-DS Sources

Add the 3 TPC-DS tables that supply sales, dates, and store attributes.

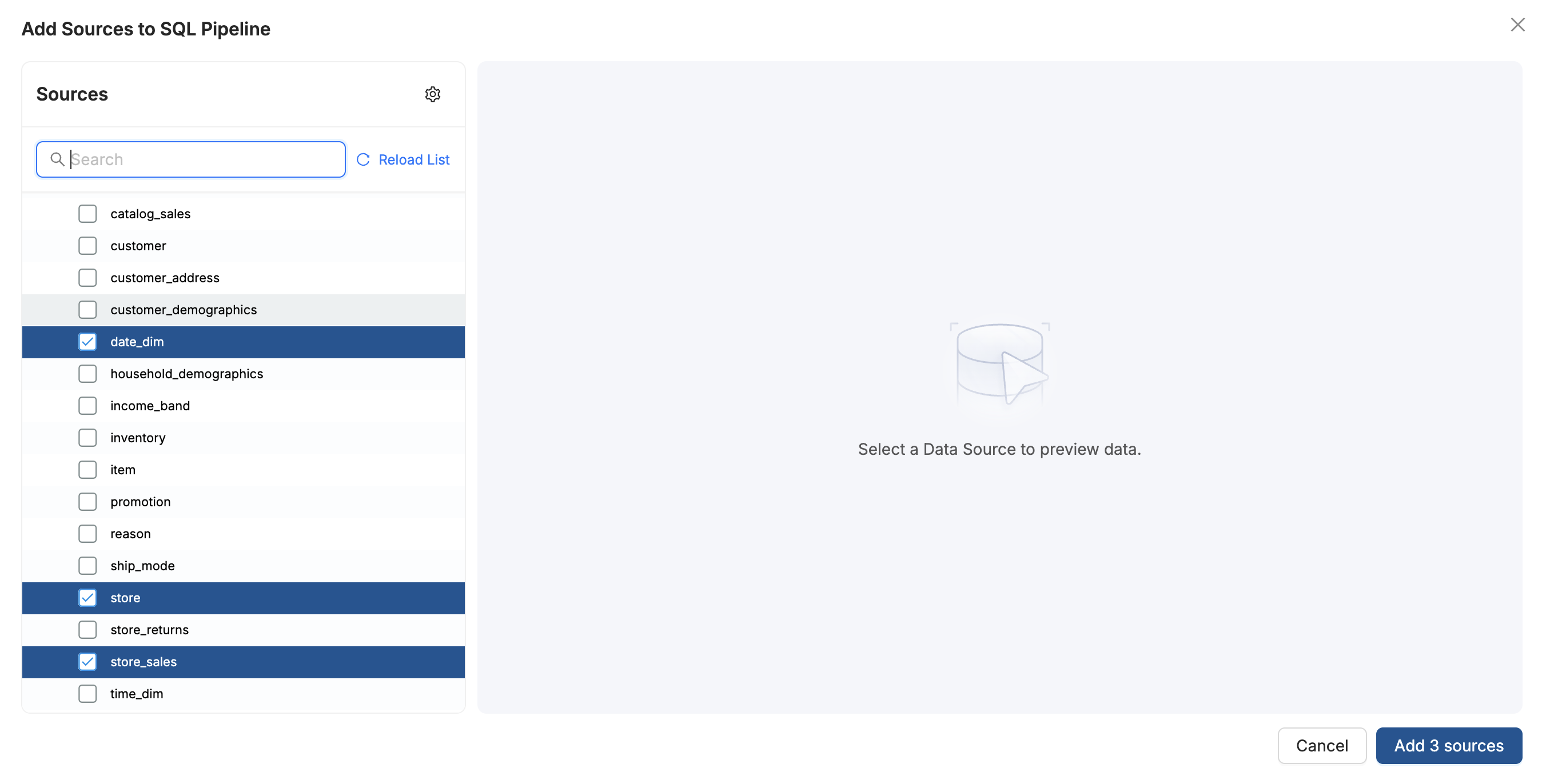

1. In your Workspace, click the + control next to the Nodes search box.
2. Choose Add Sources.
3. Select only these tables from samples.tpcds_sf1:
   1. store_sales
   2. date_dim
   3. store
4. Click Add 3 sources so the Sources appear on the graph.

Step 2: Build Input Values

Create a Stage Node that aggregates 2001 store sales by month and reshapes sales, units, and COGS into long-form input rows.

1. In Browser, click the + control next to the Nodes search box.

2. Choose Add Node > Stage.

3. Name the Node stg_input_values and set its Storage Location to TARGET.

4. Set the Node description to Unpivoted input metrics from store sales aggregated by store and month for 2001.

5. On the Join tab, paste:

   FROM (
     WITH base_agg AS (
       SELECT
         date_dim.d_moy AS period_month,
         store.s_store_sk AS site_id,
         store.s_store_name AS site_name,
         SUM(store_sales.ss_ext_sales_price) AS agg_sales,
         SUM(store_sales.ss_quantity) AS agg_units,
         SUM(store_sales.ss_ext_wholesale_cost) AS agg_cogs
       FROM {{ ref('SRC', 'store_sales') }} store_sales
       INNER JOIN {{ ref('SRC', 'date_dim') }} date_dim
         ON store_sales.ss_sold_date_sk = date_dim.d_date_sk
       INNER JOIN {{ ref('SRC', 'store') }} store
         ON store_sales.ss_store_sk = store.s_store_sk
       WHERE date_dim.d_year = 2001
       GROUP BY date_dim.d_moy, store.s_store_sk, store.s_store_name
     )
     SELECT period_month, site_id, site_name, CAST('IN_SALES' AS STRING) AS input_id,
           CAST(agg_sales AS DECIMAL(18,2)) AS input_value FROM base_agg
     UNION ALL
     SELECT period_month, site_id, site_name, CAST('IN_UNITS' AS STRING) AS input_id,
           CAST(agg_units AS DECIMAL(18,2)) AS input_value FROM base_agg
     UNION ALL
     SELECT period_month, site_id, site_name, CAST('IN_COGS' AS STRING) AS input_id,
           CAST(agg_cogs AS DECIMAL(18,2)) AS input_value FROM base_agg
   ) src

   What does stg_input_values do?

   This Join builds stg_input_values: 1 row per input metric, store, and month for 2001.

   1. base_agg aggregates TPC-DS store_sales by month and store into 3 measures: sales, units, and COGS.
   2. UNION ALL reshapes those 3 columns into long form: each measure becomes a row with input_id set to IN_SALES, IN_UNITS, or IN_COGS, plus input_value.
   3. FROM ( … ) src wraps the CTE so Coalesce can treat it as a Join source, as in SELECT … FROM ( … ) src.

6. On the Mapping tab, make sure the columns are mapped to the following:

   • src.period_month - BIGINT
   • src.site_id - BIGINT
   • src.site_name - STRING
   • src.input_id - STRING
   • src.input_value - DECIMAL(18,2)

7. Click Create. Confirm the Node creates successfully.

8. Click Run. Confirm the run succeeds.

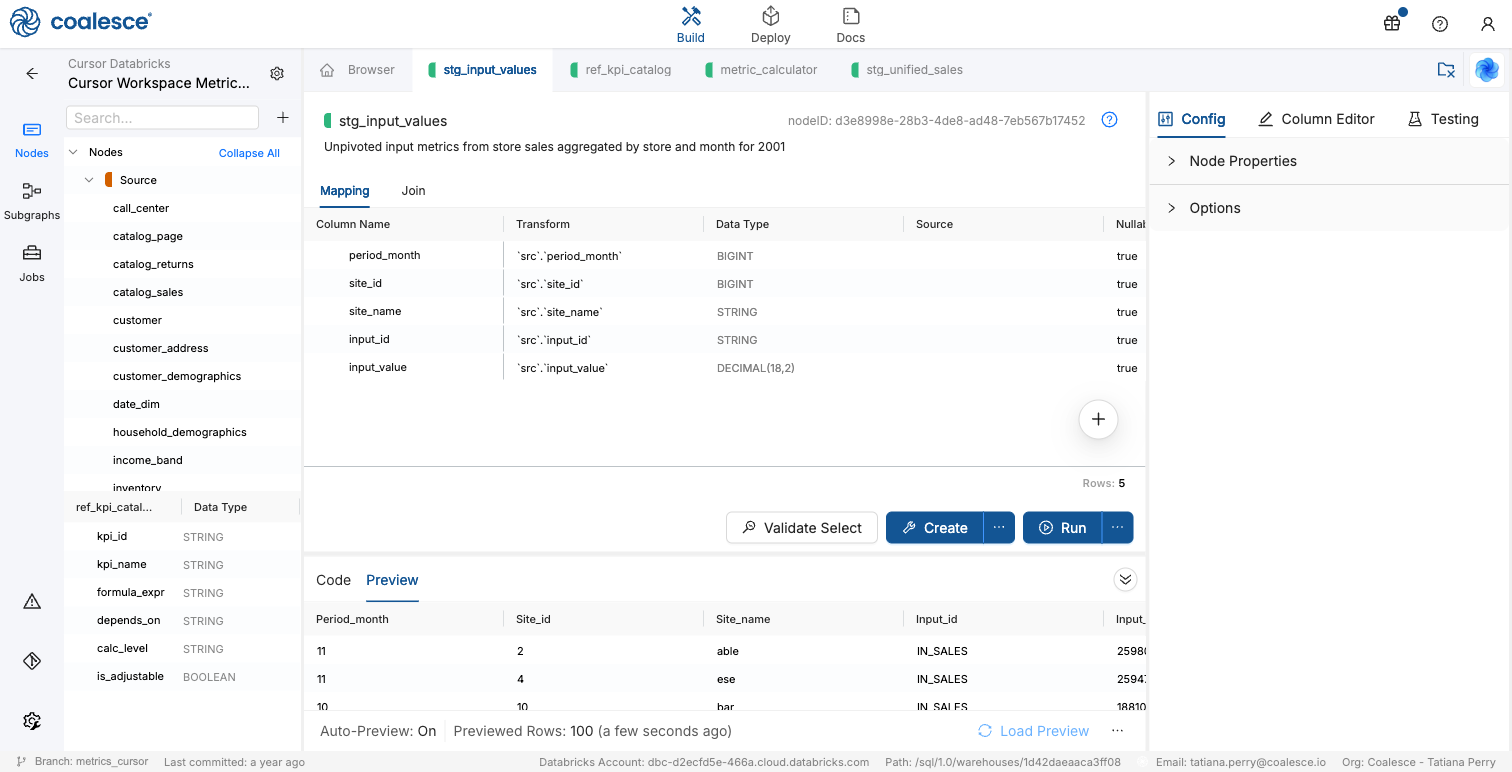

9. Open Preview and confirm long-form rows for IN_SALES, IN_UNITS, and IN_COGS.

Step 3: Seed the KPI Catalog

Create a Stage Node that seeds KPI definitions, formulas, dependencies, and whether each KPI is adjustable as data.

1. In Browser, click the + control next to the Nodes search box.

2. Choose Add Node > Stage.

3. Name the Node ref_kpi_catalog and set its Storage Location to TARGET.

4. Set the Node description to KPI catalog defining calculation formulas, dependencies, and whether each KPI is adjustable.

5. On the Join tab, paste:

   FROM (
     SELECT 'KPI_GROSS_MARGIN' AS kpi_id, 'Gross Margin' AS kpi_name,
           'IN_SALES - IN_COGS' AS formula_expr, 'IN_SALES,IN_COGS' AS depends_on,
           'input' AS calc_level, FALSE AS is_adjustable
     UNION ALL
     SELECT 'KPI_ASP', 'Average Selling Price',
           'IN_SALES / NULLIF(IN_UNITS, 0)', 'IN_SALES,IN_UNITS',
           'input', FALSE
     UNION ALL
     SELECT 'KPI_MARGIN_PCT', 'Margin Percentage',
           '(KPI_GROSS_MARGIN / NULLIF(IN_SALES, 0)) * 100', 'KPI_GROSS_MARGIN,IN_SALES',
           'derived', FALSE
     UNION ALL
     SELECT 'KPI_CONTRIBUTION', 'Contribution to Total',
           'KPI_GROSS_MARGIN', 'KPI_GROSS_MARGIN',
           'derived', TRUE
   ) src

   What does ref_kpi_catalog do?

   This Join seeds ref_kpi_catalog: 1 row per KPI definition, built from hard-coded UNION ALL selects.

   1. Each SELECT defines a KPI: kpi_id, display name, formula_expr, comma-separated depends_on inputs or KPIs, calc_level as input or derived, and is_adjustable.
   2. UNION ALL stacks the 4 sample KPIs into 1 result set: gross margin and ASP from inputs, then margin percentage and contribution from derived KPIs.
   3. FROM ( … ) src wraps the seed so Coalesce can treat it as a Join source.

   ref_kpi_catalog and ref_adjustments are built from hard-coded UNION ALL rows in the Join. In production, you can load them from an application or admin process instead. They do not read store_sales, date_dim, or store, so the graph correctly shows no upstream Sources. Their outgoing lines go into fct_kpi_values.

   How they get updates:

   • In this guide - You change the seed SQL, then Create and Run those Nodes again. They do not refresh from warehouse Sources.
   • Production use case - Update the catalog with manual Databricks changes or a formula UI. Load adjustments from the adjustments application, not from sales Sources.

   Refresh stg_input_values from Sources often. Refresh the refs when the catalog or adjustment feed changes, then re-run fct_kpi_values and fct_kpi_bi_flat.

6. On the Mapping tab, make sure the columns are mapped to the following:

   • src.kpi_id - STRING
   • src.kpi_name - STRING
   • src.formula_expr - STRING
   • src.depends_on - STRING
   • src.calc_level - STRING
   • src.is_adjustable - BOOLEAN

7. Click Create. Confirm the Node creates successfully.

8. Click Run. Confirm the run succeeds.

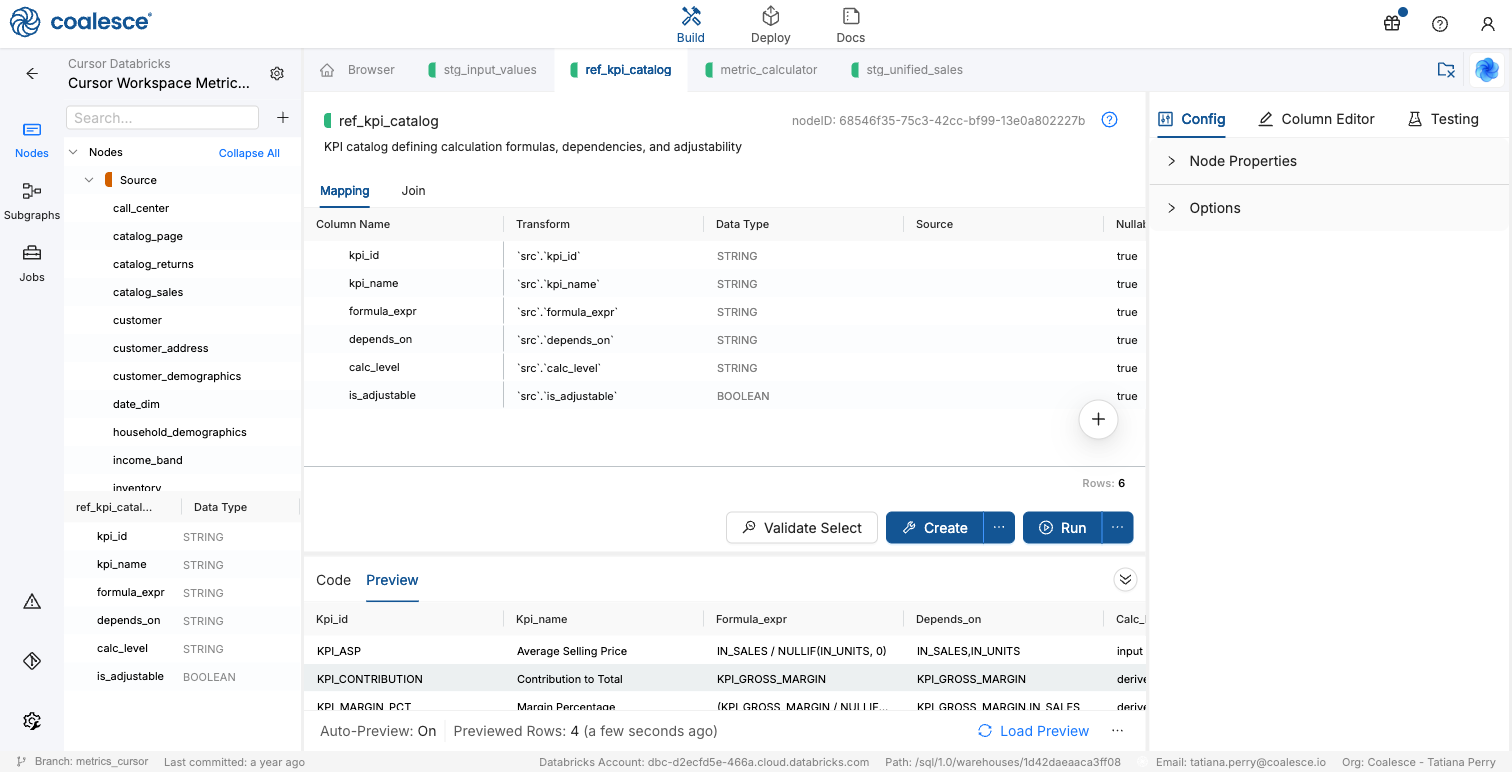

9. Open Preview and confirm 4 catalog rows.

depends_on and formula_expr document the intended hierarchy for governance and for a future dynamic evaluator. In this guide, Step 5 implements matching math in SQL and joins the catalog so is_adjustable controls whether adjustment deltas apply.

Step 4: Seed Adjustments

Create a Stage Node with sample adjustment deltas for the adjustable KPI.

1. In Browser, click the + control next to the Nodes search box.

2. Choose Add Node > Stage.

3. Name the Node ref_adjustments and set its Storage Location to TARGET.

4. Set the Node description to Manual adjustments for adjustable KPIs.

5. On the Join tab, paste:

   FROM (
     SELECT 'KPI_CONTRIBUTION' AS kpi_id, 1 AS period_month, 1 AS site_id,
            'Store A' AS site_name, 150.00 AS adjustment_delta,
            'Q1 promotional boost' AS adjustment_reason
     UNION ALL
     SELECT 'KPI_CONTRIBUTION', 2, 1, 'Store A', -75.50, 'Inventory write-down'
     UNION ALL
     SELECT 'KPI_CONTRIBUTION', 3, 2, 'Store B', 200.00, 'New product launch'
     UNION ALL
     SELECT 'KPI_CONTRIBUTION', 1, 4, 'Store C', -50.00, 'Discount campaign'
   ) src

   What does ref_adjustments do?

   This Join seeds ref_adjustments: 1 row per manual delta for an adjustable KPI, site, and month, built from hard-coded UNION ALL selects.

   1. Each SELECT defines an adjustment: which kpi_id it applies to, the period_month, site_id, and site_name grain, a signed adjustment_delta, and an adjustment_reason.
   2. UNION ALL stacks the 4 sample adjustments into 1 result set. All rows target KPI_CONTRIBUTION, the only adjustable KPI in the catalog.
   3. FROM ( … ) src wraps the seed so Coalesce can treat it as a Join source.
   4. Use site_id values that appear in stg_input_values for year 2001. In this sample, those keys are 1, 2, 4, 7, 8, and 10. A seed row for a missing site_id never joins in Step 5.

6. On the Mapping tab, make sure the columns are mapped to the following:

   • src.kpi_id - STRING
   • src.period_month - BIGINT
   • src.site_id - BIGINT
   • src.site_name - STRING
   • src.adjustment_delta - DECIMAL(18,2)
   • src.adjustment_reason - STRING

7. Click Create. Confirm the Node creates successfully.

8. Click Run. Confirm the run succeeds.

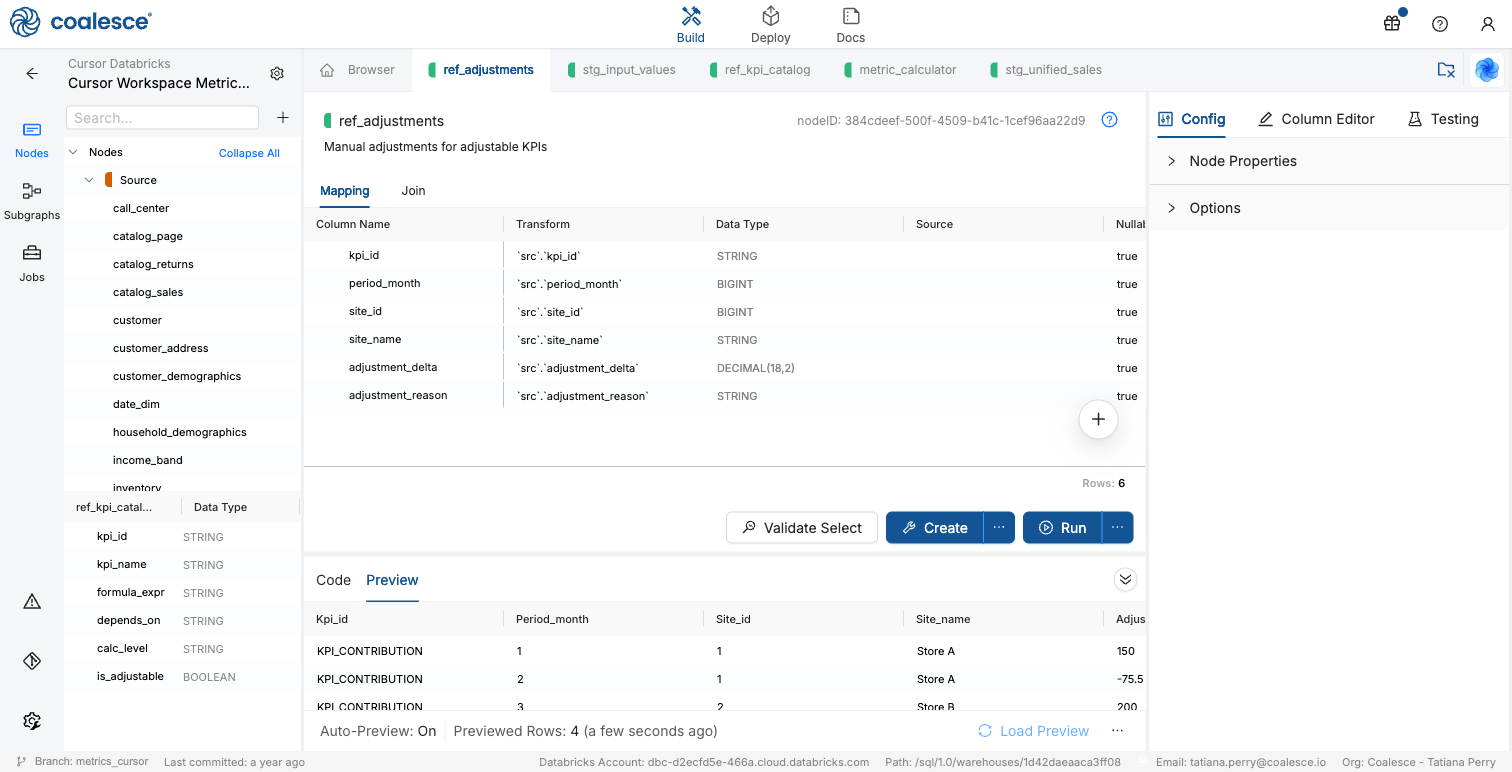

9. Open Preview and confirm 4 adjustment rows.

In production, load this table from your adjustments application. In this guide, synthetic rows prove the delta path on matching kpi_id, period_month, and site_id keys for adjustable KPIs. The site_name values in the seed, such as Store A, are labels only and are not join keys. Step 5 keeps site_name from stg_input_values, so preview names can differ from the seed labels.

Step 5: Calculate KPI Values

Create the engine Stage Node that pivots inputs, calculates each KPI in SQL, and applies adjustments only where the catalog allows them.

1. In Browser, right-click stg_input_values and select Add Node > Stage.

2. Name the Node fct_kpi_values and set its Storage Location to TARGET.

3. Set the Node description to Calculated KPI values with engine-computed values plus manual adjustments.

4. On the Join tab, paste:

   FROM (
     WITH input_pivot AS (
       SELECT
         period_month,
         site_id,
         site_name,
         MAX(CASE WHEN input_id = 'IN_SALES' THEN input_value END) AS in_sales,
         MAX(CASE WHEN input_id = 'IN_UNITS' THEN input_value END) AS in_units,
         MAX(CASE WHEN input_id = 'IN_COGS' THEN input_value END) AS in_cogs
       FROM {{ ref('TARGET', 'stg_input_values') }} stg_input_values
       GROUP BY period_month, site_id, site_name
     ),
     kpi_calc AS (
       SELECT
         'KPI_GROSS_MARGIN' AS kpi_id,
         period_month,
         site_id,
         site_name,
         in_sales - in_cogs AS engine_value
       FROM input_pivot
       UNION ALL
       SELECT
         'KPI_ASP',
         period_month,
         site_id,
         site_name,
         in_sales / NULLIF(in_units, 0) AS engine_value
       FROM input_pivot
       UNION ALL
       SELECT
         'KPI_MARGIN_PCT',
         period_month,
         site_id,
         site_name,
         ((in_sales - in_cogs) / NULLIF(in_sales, 0)) * 100 AS engine_value
       FROM input_pivot
       UNION ALL
       SELECT
         'KPI_CONTRIBUTION',
         period_month,
         site_id,
         site_name,
         in_sales - in_cogs AS engine_value
       FROM input_pivot
     )
     SELECT
       kpi_calc.kpi_id,
       kpi_calc.period_month,
       kpi_calc.site_id,
       kpi_calc.site_name,
       kpi_calc.engine_value,
       CASE
         WHEN ref_kpi_catalog.is_adjustable THEN COALESCE(ref_adjustments.adjustment_delta, 0.0)
         ELSE 0.0
       END AS adjustment_delta,
       kpi_calc.engine_value + CASE
         WHEN ref_kpi_catalog.is_adjustable THEN COALESCE(ref_adjustments.adjustment_delta, 0.0)
         ELSE 0.0
       END AS final_value
     FROM kpi_calc
     INNER JOIN {{ ref('TARGET', 'ref_kpi_catalog') }} ref_kpi_catalog
       ON kpi_calc.kpi_id = ref_kpi_catalog.kpi_id
     LEFT JOIN {{ ref('TARGET', 'ref_adjustments') }} ref_adjustments
       ON kpi_calc.kpi_id = ref_adjustments.kpi_id
       AND kpi_calc.period_month = ref_adjustments.period_month
       AND kpi_calc.site_id = ref_adjustments.site_id
   ) src

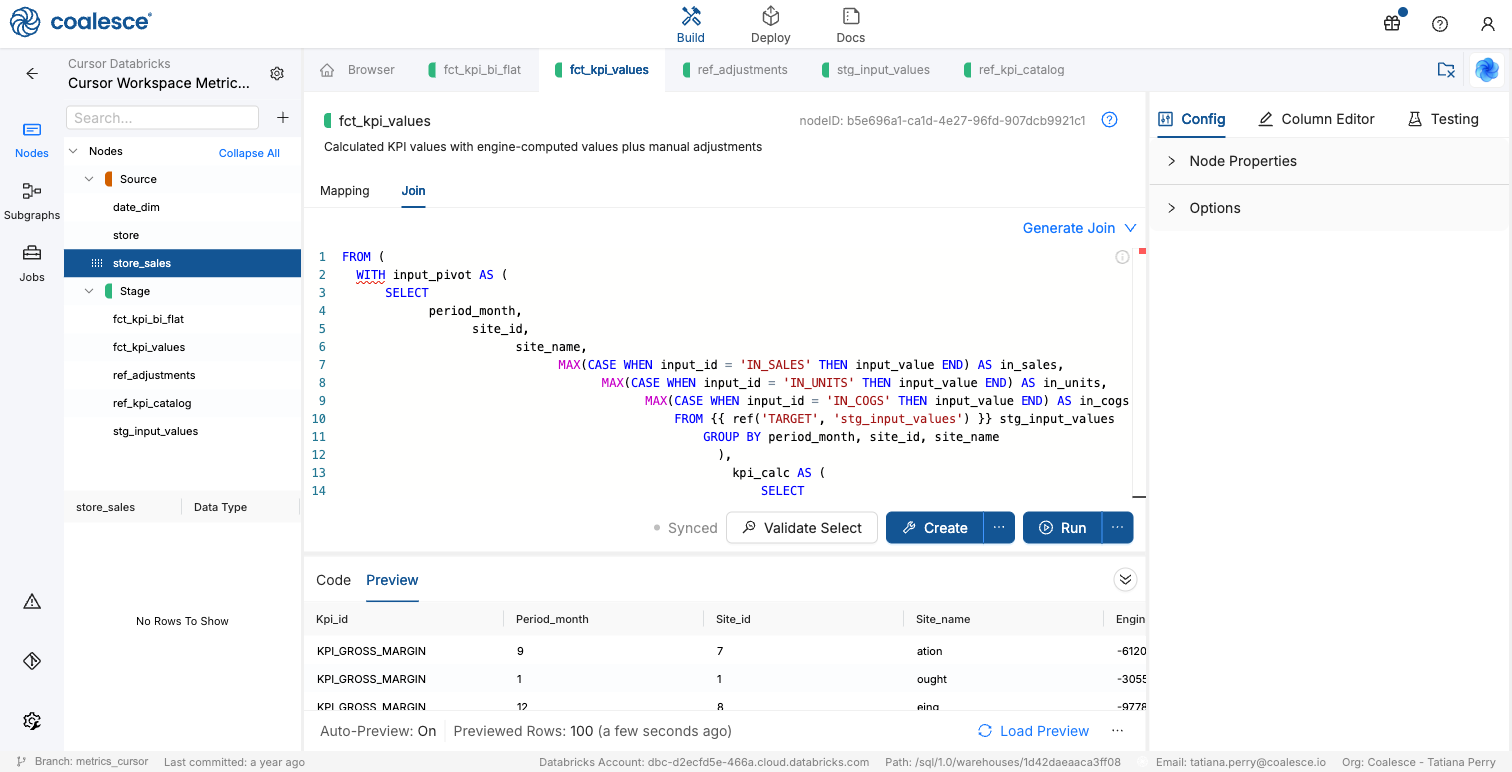

   What does fct_kpi_values do?

   This Join builds fct_kpi_values: 1 row per KPI, store, and month with engine-computed and final values.

   1. input_pivot pivots long-form inputs into wide columns in_sales, in_units, and in_cogs per site and month.
   2. kpi_calc calculates each catalog KPI in SQL, mirroring formula_expr, and stacks the results with UNION ALL.
   3. The outer SELECT joins ref_kpi_catalog and ref_adjustments, applies deltas only when is_adjustable is true, and sets final_value = engine_value + adjustment_delta.
   4. FROM ( … ) src wraps the CTEs so Coalesce can treat the query as a Join source.

5. On the Mapping tab, make sure the columns are mapped to the following:

   • src.kpi_id - STRING
   • src.period_month - BIGINT
   • src.site_id - BIGINT
   • src.site_name - STRING
   • src.engine_value - DECIMAL(18,2)
   • src.adjustment_delta - DECIMAL(18,2)
   • src.final_value - DECIMAL(18,2)

6. Click Create. Confirm the Node creates successfully.

7. Click Run. Confirm the run succeeds.

8. Open Preview and confirm engine_value, adjustment_delta, and final_value for each KPI. Preview typically returns 100 sample rows. Where an adjustment matches an adjustable KPI, final_value differs from engine_value by that delta.

On the graph, fct_kpi_values should show parents stg_input_values, ref_kpi_catalog, and ref_adjustments.

Step 6: Present a Flat BI Table

Create a Stage Node that pivots long-form KPI finals into 1 wide row per site and month for BI.

1. In Browser, right-click fct_kpi_values and select Add Node > Stage.

2. Name the Node fct_kpi_bi_flat and set its Storage Location to TARGET.

3. Set the Node description to Flattened BI-ready table with one column per KPI for reporting tools.

4. On the Join tab, paste:

   FROM {{ ref('TARGET', 'fct_kpi_values') }} fct_kpi_values
   GROUP BY
     period_month,
     site_id,
     site_name

   What does fct_kpi_bi_flat do?

   This Join builds fct_kpi_bi_flat: 1 wide row per site and month for BI consumption.

   1. The Join reads fct_kpi_values and groups by period_month, site_id, and site_name.
   2. Mapping transforms pivot each kpi_id into its own column with MAX(CASE WHEN … THEN final_value END).

5. On the Mapping tab, define the grain columns and conditional aggregates:

   Column	Transform	Type
   period_month	fct_kpi_values.period_month	BIGINT
   site_id	fct_kpi_values.site_id	BIGINT
   site_name	fct_kpi_values.site_name	STRING
   kpi_gross_margin	MAX(CASE WHEN fct_kpi_values.kpi_id = 'KPI_GROSS_MARGIN' THEN fct_kpi_values.final_value END)	DECIMAL(18,2)
   kpi_asp	MAX(CASE WHEN fct_kpi_values.kpi_id = 'KPI_ASP' THEN fct_kpi_values.final_value END)	DECIMAL(18,2)
   kpi_margin_pct	MAX(CASE WHEN fct_kpi_values.kpi_id = 'KPI_MARGIN_PCT' THEN fct_kpi_values.final_value END)	DECIMAL(18,2)
   kpi_contribution	MAX(CASE WHEN fct_kpi_values.kpi_id = 'KPI_CONTRIBUTION' THEN fct_kpi_values.final_value END)	DECIMAL(18,2)

6. Click Create. Confirm the Node creates successfully.

7. Click Run. Confirm the run succeeds.

8. Open Preview and confirm the wide table. Previewed Rows should show 72 site-month combinations for year 2001 store sales in this example, with 1 column per KPI. That count is the distinct site and month pairs present in the filtered sales data, not every store key in TPC-DS.

What's Next?

• Review Databricks Connection Guide if teammates need the same warehouse setup.
• Explore Databricks & Coalesce: Build a Weather Analytics Pipeline for another Databricks Stage and Fact walkthrough.
• Read Using Incremental Nodes when input extracts should load only new periods.
